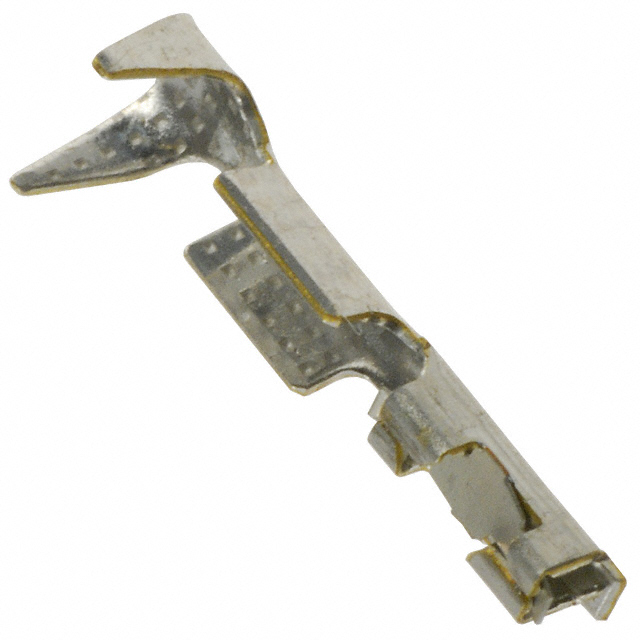

47715-000LF
ActiveAmphenol ICC (FCI)
CONN SOCKET 22-26AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
47715-000LF
ActiveAmphenol ICC (FCI)
CONN SOCKET 22-26AWG CRIMP TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 47715-000LF |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.58 | |
| 10 | $ 0.44 | |||
| 25 | $ 0.37 | |||
| 50 | $ 0.33 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.29 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.26 | |||
| 2500 | $ 0.24 | |||
Description
General part information
47715 Series
Socket Contact Tin 22-26 AWG Crimp
