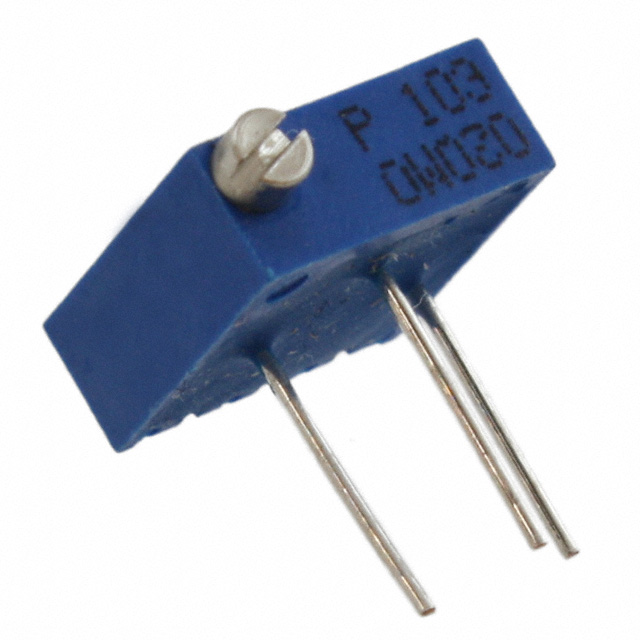

3292P Series

Part	Temperature Coefficient	Resistive Material	Termination Style	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Width	Tolerance	Resistance	Number of Turns	Mounting Type	Power (Watts)	Power (Watts) Options	Adjustment Type
Bourns Inc. 3292P-1-500	100 ppm/°C	Cermet	PC Pins	0.375 in	Rectangular	0.15 in	10 %	50 Ohms	25	Through Hole	500 mW	1/2W	Side Adjustment
Bourns Inc. 3292P-1-202LF	100 ppm/°C	Cermet	PC Pins	0.375 in	Rectangular	0.15 in	10 %	2 kOhm	25	Through Hole	500 mW	1/2W	Side Adjustment
Bourns Inc. 3292P-1-502LF	100 ppm/°C	Cermet	PC Pins	0.375 in	Rectangular	0.15 in	10 %	5 kOhm	25	Through Hole	500 mW	1/2W	Side Adjustment
Bourns Inc. 3292P-1-502	100 ppm/°C	Cermet	PC Pins	0.375 in	Rectangular	0.15 in	10 %	5 kOhm	25	Through Hole	500 mW	1/2W	Side Adjustment
Bourns Inc. 3292P-1-103LF	100 ppm/°C	Cermet	PC Pins	0.375 in	Rectangular	0.15 in	10 %	10 kOhm	25	Through Hole	500 mW	1/2W	Side Adjustment
Bourns Inc. 3292P-1-505LF	100 ppm/°C	Cermet	PC Pins	0.375 in	Rectangular	0.15 in	10 %	5 MOhm	25	Through Hole	500 mW	1/2W	Side Adjustment
Bourns Inc. 3292P-1-201LF	100 ppm/°C	Cermet	PC Pins	0.375 in	Rectangular	0.15 in	10 %	200 Ohm	25	Through Hole	500 mW	1/2W	Side Adjustment
Bourns Inc. 3292P-1-503	100 ppm/°C	Cermet	PC Pins	0.375 in	Rectangular	0.15 in	10 %	50 kOhm	25	Through Hole	500 mW	1/2W	Side Adjustment
Bourns Inc. 3292P-1-501LF	100 ppm/°C	Cermet	PC Pins	0.375 in	Rectangular	0.15 in	10 %	500 Ohm	25	Through Hole	500 mW	1/2W	Side Adjustment
Bourns Inc. 3292P-1-200	100 ppm/°C	Cermet	PC Pins	0.375 in	Rectangular	0.15 in	10 %	20 Ohm	25	Through Hole	500 mW	1/2W	Side Adjustment

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
