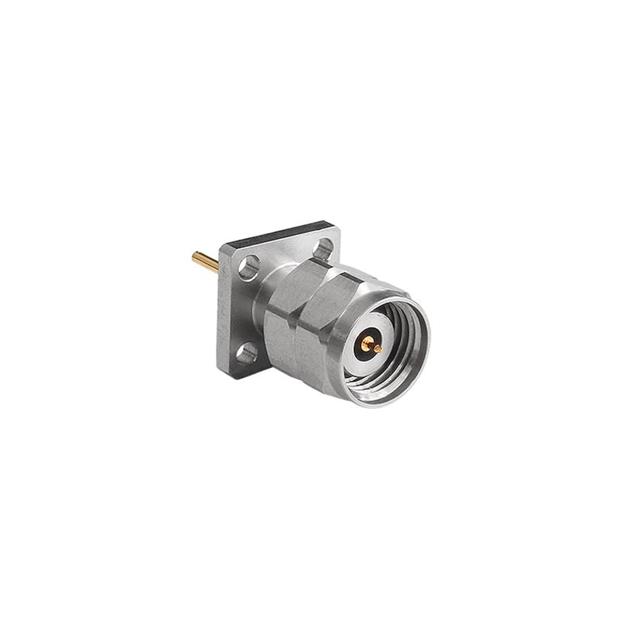

RF240A4PCCGM

Active

BULGIN LIMITED

RF / COAXIAL CONNECTOR, 2.4MM COAXIAL, STRAIGHT FLANGED PLUG, SOLDER, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

RF240A4PCCGM

Active

BULGIN LIMITED

RF / COAXIAL CONNECTOR, 2.4MM COAXIAL, STRAIGHT FLANGED PLUG, SOLDER, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RF240A4PCCGM

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Connector Style	OS-50
Connector Style	2.4 mm
Connector Style	APC-2.4
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polyetherimide (PEI)
Frequency - Max [Max]	50 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	150 VDC

RF240 Series

Part	Contact Termination	Frequency - Max [Max]	Body Material	Mating Cycles	Center Contact Material	Shield Termination	Housing Color	Voltage Rating	Dielectric Material	Mounting Feature	Number of Ports	Impedance	Connector Type	Connector Style	Connector Style	Connector Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Features
BULGIN LIMITED RF240A2JEGDK	Solder	50 GHz	Stainless Steel	500	Beryllium Copper	Solder	Silver	150 VDC	Polyetherimide (PEI)	Flange	1	50 Ohms	Female Socket Jack	OS-50	2.4 mm	APC-2.4	Panel Mount Through Hole	85 °C	-40 °C
BULGIN LIMITED RF240A4PCCGM	Solder	50 GHz	Stainless Steel	500	Beryllium Copper	Solder	Silver	150 VDC	Polyetherimide (PEI)	Flange	1	50 Ohms	Male Pin Plug	OS-50	2.4 mm	APC-2.4	Panel Mount Through Hole	85 °C	-40 °C
BULGIN LIMITED RF240A4JCCJJ	Solder	50 GHz	Stainless Steel	500	Beryllium Copper	Solder	Silver	150 VDC	Polyetherimide (PEI)	Flange	1	50 Ohms	Female Socket Jack	OS-50	2.4 mm	APC-2.4	Panel Mount Through Hole	85 °C	-40 °C
BULGIN LIMITED RF240A2JEGADAA	Solder	50 GHz	Stainless Steel	500	Beryllium Copper	Solder	Silver	150 VDC	Polyetherimide (PEI)	Flange	1	50 Ohms	Female Socket Jack	OS-50	2.4 mm	APC-2.4	Panel Mount Through Hole	85 °C	-40 °C	Extended Insulation
BULGIN LIMITED RF240A2JEGJJ	Solder	50 GHz	Stainless Steel	500	Beryllium Copper	Solder	Silver	150 VDC	Polyetherimide (PEI)	Flange	1	50 Ohms	Female Socket Jack	OS-50	2.4 mm	APC-2.4	Panel Mount Through Hole	85 °C	-40 °C
BULGIN LIMITED RF240A2PEGGM	Solder	50 GHz	Stainless Steel	500	Beryllium Copper	Solder	Silver	150 VDC	Polyetherimide (PEI)	Flange	1	50 Ohms	Male Pin Plug	OS-50	2.4 mm	APC-2.4	Panel Mount Through Hole	85 °C	-40 °C
BULGIN LIMITED RF240A4PCCDO	Solder	50 GHz	Stainless Steel	500	Beryllium Copper	Solder	Silver	150 VDC	Polyetherimide (PEI)	Flange	1	50 Ohms	Male Pin Plug	OS-50	2.4 mm	APC-2.4	Panel Mount Through Hole	85 °C	-40 °C
BULGIN LIMITED RF240A4JCCA	Compression	50 GHz	Stainless Steel	500	Beryllium Copper	Screw	Silver	150 VDC	Polyetherimide (PEI)	Flange	1	50 Ohms	Female Socket Jack	OS-50	2.4 mm	APC-2.4		85 °C	-40 °C
BULGIN LIMITED RF240A4JCCE	Compression	50 GHz	Stainless Steel	500	Beryllium Copper	Screw	Silver	150 VDC	Polyetherimide (PEI)	Flange	1	50 Ohms	Female Socket Jack	OS-50	2.4 mm	APC-2.4		85 °C	-40 °C
BULGIN LIMITED RF240A2JEGCEBF	Solder	50 GHz	Stainless Steel	500	Beryllium Copper	Solder	Silver	150 VDC	Polyetherimide (PEI)	Flange	1	50 Ohms	Female Socket Jack	OS-50	2.4 mm	APC-2.4	Panel Mount Through Hole	85 °C	-40 °C	Extended Insulation

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 95.59
		10	$ 87.71
		25	$ 84.34

Description

General part information

RF240 Series

2.4mm (APC-2.4, OS-50) Connector Plug, Male Pin 50 Ohms Panel Mount, Through Hole Solder

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
