HS2P7M26

Active

Switchcraft Inc.

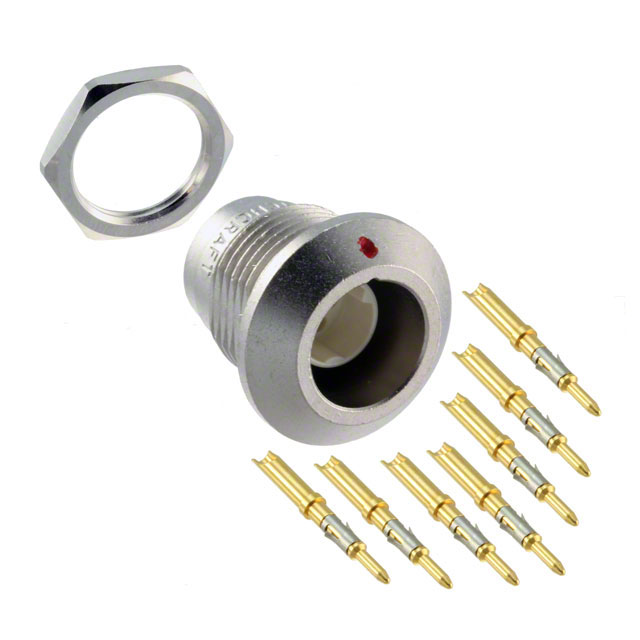

CONN RCPT MALE 7POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE 7POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Crimp or Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	HS2P7M26	HS2P7M Series

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 HF-1	UL94 HF-1
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Front Side Nut, Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	7	7
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Crimp, Solder Cup	Solder, Crimp, Solder Cup
Voltage Rating	30 VAC	30 VAC

CONN CIRCULAR PIN 7 POS SOLDER ST THRU-HOLE 7 TERMINAL 1 PORT BULK

Part	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Number of Positions	Voltage Rating	Mounting Type	Shielding	Fastening Type	Contact Material	Shell Finish	Connector Type	Termination	Contact Finish - Mating	Orientation	Mounting Feature	Insert Material	Primary Material	Applications	Color	Material Flammability Rating
Switchcraft Inc. HS2P7M26-BPE	IP66, IP67, IP68	135 °C	-40 °C	Copper Alloy	7	30 VAC	Panel Mount, Through Hole	Shielded	Push-Pull	Copper Alloy	Electroless Nickel	Male Pins, Receptacle	Solder	Gold	Keyed	Bulkhead - Front Side Nut	Liquid Crystal Polymer (LCP)	Metal	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Silver
Switchcraft Inc. HS2P7M26	IP66, IP67, IP68	135 °C	-40 °C	Copper Alloy	7	30 VAC		Shielded	Push-Pull	Copper Alloy	Electroless Nickel	Male Pins, Receptacle	Crimp, Solder Cup	Gold	Keyed	Bulkhead - Rear Side Nut	Liquid Crystal Polymer (LCP)	Metal	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Silver	UL94 HF-1
Switchcraft Inc. HS2P7M26-BP	IP66, IP67, IP68	135 °C	-40 °C	Copper Alloy	7	30 VAC	Panel Mount, Through Hole	Shielded	Push-Pull	Copper Alloy	Electroless Nickel	Male Pins, Receptacle	Solder	Gold	Keyed	Bulkhead - Front Side Nut	Liquid Crystal Polymer (LCP)	Metal	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Silver
