8770 060U1000

Active

Belden Inc.

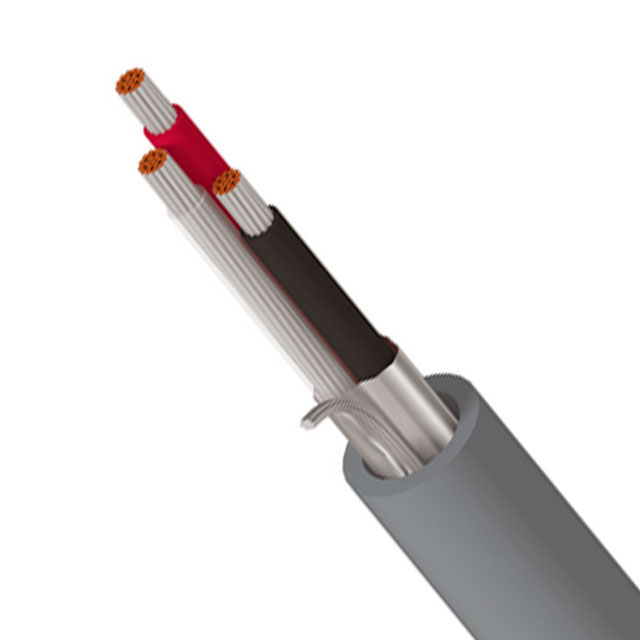

CABLE 3COND 18AWG CHROMEE SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 18AWG CHROMEE SHD

Technical Specifications

Parameters and characteristics for this part

Specification	8770 060U1000

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.246 in
Jacket (Insulation) Diameter [diameter]	6.25 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.838 mm
Jacket (Insulation) Thickness	0.033 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2093
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	18 AWG

Part	Jacket (Insulation) Material	Number of Conductors	Ratings	Conductor Material	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Length	Length	Shield Material	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Features	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Shield Type	Voltage	Length [x]	Length [x]
Belden Inc. 8770 060U1000	Poly-Vinyl Chloride (PVC)	3	UL Style 2093	Copper Tinned	Polyethylene (PE)	0.838 mm	0.033 in	Multi-Conductor	1000 ft	304.8 m	Aluminum	Chrome	-20 C	60 °C	100 %	Drain Wire	18 AWG	16	30 AWG	0.246 in	6.25 mm	Audio Control Instrumentation	Foil
Belden Inc. 8770 0605000	Poly-Vinyl Chloride (PVC)	3	UL Style 2093	Copper Tinned	Polyethylene (PE)	0.838 mm	0.033 in	Multi-Conductor			Aluminum	Chrome	-20 C	60 °C	100 %	Drain Wire	18 AWG	16	30 AWG	0.246 in	6.25 mm	Audio Control Instrumentation	Foil	300 V
Belden Inc. 8770 060U500	Poly-Vinyl Chloride (PVC)	3		Copper Tinned	Polyethylene (PE)	0.838 mm	0.033 in	Multi-Conductor			Aluminum	Chrome	-20 C	60 °C	100 %	Drain Wire	18 AWG	16	30 AWG	0.246 in	6.25 mm	Audio Control Instrumentation	Foil		500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1000	$ 2.11

General part information

3 Conductor Multi-Conductor Cable Chrome 18 AWG Foil 1000.0' (304.8m)
