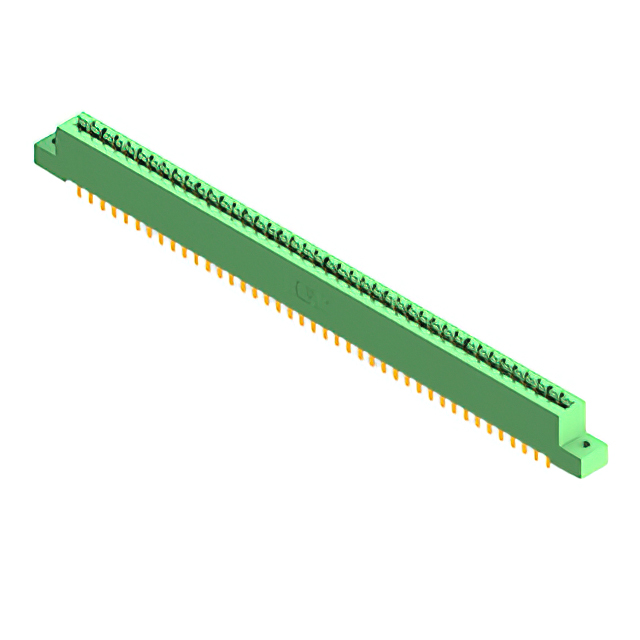

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 82 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
337-082-544-202
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 82 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-082-544-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 82 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
337-082 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Gender | Number of Rows | Termination | Features | Contact Type | Material - Insulation | Flange Feature | Number of Positions | Contact Material | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Finish | Card Type | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Pitch [x] | Pitch [x] | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Female | 2 | Solder Eyelet(s) | Card Guides | Cantilever | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 82 | Copper Alloy | 2 | -40 °C | 105 ░C | Green | Gold | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.156 in | 3.96 mm | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | 2 | Solder | Cantilever | Polyester Thermoplastic | Side Mount Opening Unthreaded | 82 | Copper Alloy | 2 | -40 °C | 105 ░C | Green | Gold | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.156 in | 3.96 mm | 3.25 mm | 0.128 in | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | 2 | Solder | Cantilever | Polyester Thermoplastic | Top Mount Opening Unthreaded | 82 | Copper Alloy | 2 | -40 °C | 105 ░C | Green | Gold | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.156 in | 3.96 mm | 0.156 in | 3.96 mm | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | 2 | Solder | Cantilever | Polyester Thermoplastic | M3 Threaded Insert Top Mount Opening | 82 | Copper Alloy | 2 | -40 °C | 105 ░C | Green | Gold | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.156 in | 3.96 mm | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | 2 | Wire Wrap | Cantilever | Polyester Thermoplastic | Side Mount Opening Unthreaded | 82 | Copper Alloy | 2 | -40 °C | 105 ░C | Green | Gold | Non Specified - Dual Edge | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.156 in | 3.96 mm | 3.25 mm | 0.128 in | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | 2 | Wire Wrap | Cantilever | Polyester Thermoplastic | 82 | Copper Alloy | 2 | -40 °C | 105 ░C | Green | Gold | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.156 in | 3.96 mm | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | 2 | Solder Eyelet(s) | Cantilever | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 82 | Copper Alloy | 2 | -40 °C | 105 ░C | Green | Gold | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.156 in | 3.96 mm | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | 2 | Wire Wrap | Cantilever | Polyester Thermoplastic | Flush Mount Top Opening Unthreaded | 82 | Copper Alloy | 2 | -40 °C | 105 ░C | Green | Gold | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.156 in | 3.96 mm | 0.128 " | 3.25 mm | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | 2 | Wire Wrap | Cantilever | Polyester Thermoplastic | Flush Mount Top Opening Unthreaded | 82 | Copper Alloy | 2 | -40 °C | 105 ░C | Green | Gold | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.156 in | 3.96 mm | 0.128 " | 3.25 mm | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Female | 2 | Wire Wrap | Cantilever | Polyester Thermoplastic | Side Mount Opening Unthreaded | 82 | Copper Alloy | 2 | -40 °C | 105 ░C | Green | Gold | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.156 in | 3.96 mm | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
337-082 Series
82 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
