MB5CKN15H00-S1

Active

Amphenol Sine Systems Corp

CONN PLUG HSG FMALE 12POS INLINE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLUG HSG FMALE 12POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	MB5CKN15H00-S1

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	0.6 mm, 2 mm, 1 mm
Contact Type	Crimp
Fastening Type	Push-Twist
Features	Backshell
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	1
Number of Positions [custom]	1
Number of Positions [custom]	6
Number of Positions [custom]	4
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-12
Shielding	Shielded
Type	For Female Sockets

Part	Contact Shape	Note	Shell Finish	Connector Type	Shell Material	Shielding	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Material Flammability Rating	Housing Color	Contact Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Shell Size - Insert	Insert Material	Fastening Type	Features	Orientation	Contact Size	Ingress Protection
Amphenol Sine Systems Corp MB5CKN15H00-S3	Circular	Contacts Not Included	Nickel	Plug Housing	Zinc Die Cast	Shielded	1	1	6	4	UL94 V-0	Silver	Crimp	For Female Sockets	-20 C	130 °C	Free Hanging (In-Line)	M23-12	Polyamide (PA66) Nylon 6/6	Push-Twist	Backshell	Keyed	0.6 mm 1 mm 2 mm	IP67 - Dust Tight Waterproof
Amphenol Sine Systems Corp MB5CKN15H00-S1	Circular	Contacts Not Included	Nickel	Plug Housing	Zinc Die Cast	Shielded	1	1	6	4	UL94 V-0	Silver	Crimp	For Female Sockets	-20 C	130 °C	Free Hanging (In-Line)	M23-12	Polyamide (PA66) Nylon 6/6	Push-Twist	Backshell	Keyed	0.6 mm 1 mm 2 mm	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

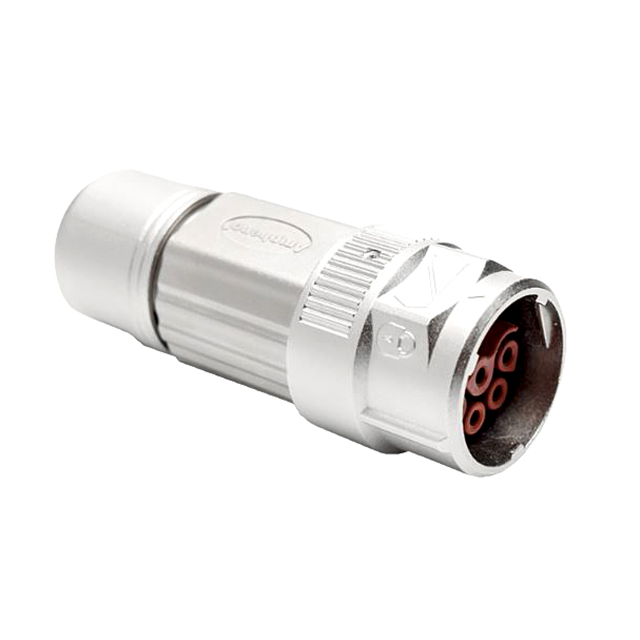

12 (6 + 4 Power + 1 Quadrax + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell
