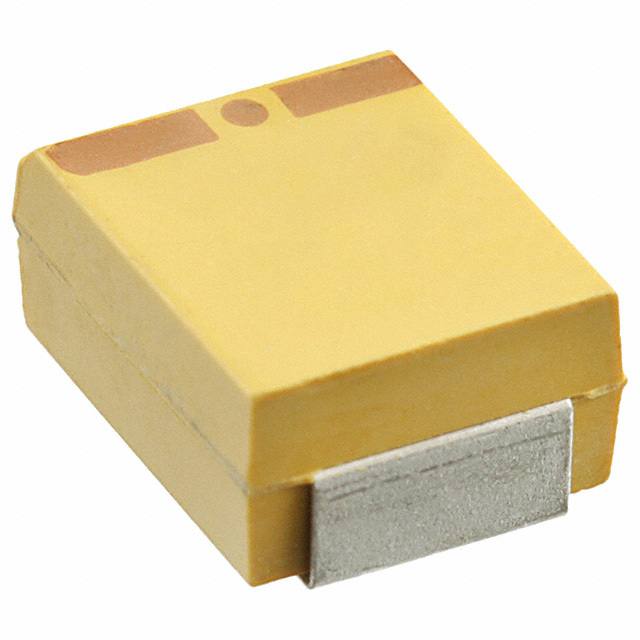

T494E477M010AT

Active

KEMET

SURFACE MOUNT TANTALUM CAPACITOR, 470 ΜF, 10 V, 2924 [7361 METRIC], ± 20%, 0.1 OHM, E

Search across all available documentation for this part.

Active

KEMET

SURFACE MOUNT TANTALUM CAPACITOR, 470 ΜF, 10 V, 2924 [7361 METRIC], ± 20%, 0.1 OHM, E

Technical Specifications

Parameters and characteristics for this part

Specification	T494E477M010AT

Capacitance	470 µF
ESR (Equivalent Series Resistance)	100 mOhms
Features	General Purpose
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	E
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	7360 Metric
Package / Case	2924
Size / Dimension [x]	7.3 mm
Size / Dimension [x]	0.287 in
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	10 V

Part	Features	Capacitance	Tolerance	Mounting Type	Lifetime @ Temp.	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Manufacturer Size Code	Type	ESR (Equivalent Series Resistance)	Package / Case
KEMET T494E107K020AT	General Purpose	100 µF	10 %	Surface Mount	2000 Hrs	2824	0.236 in	7.3 mm	0.287 in	6 mm	-55 °C	125 °C	20 V	E	Molded
KEMET T494E227K016AT	General Purpose	220 µF	10 %	Surface Mount	2000 Hrs	2824	0.236 in	7.3 mm	0.287 in	6 mm	-55 °C	125 °C	16 V	E	Molded	500 mOhms
KEMET T494E477K006AT	General Purpose	470 µF	10 %	Surface Mount	2000 Hrs	2824	0.236 in	7.3 mm	0.287 in	6 mm	-55 °C	125 °C	6.3 V	E	Molded	200 mOhm
KEMET T494E477M010AT	General Purpose	470 µF	20 %	Surface Mount	2000 Hrs	2924	0.236 in	7.3 mm	0.287 in	6 mm	-55 °C	125 °C	10 V	E	Molded	100 mOhms	7360 Metric

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

470 µF Molded Tantalum Capacitors 10 V 2924 (7360 Metric) 100mOhm
