Q-2G031000H084i

Active

Amphenol Custom Cable

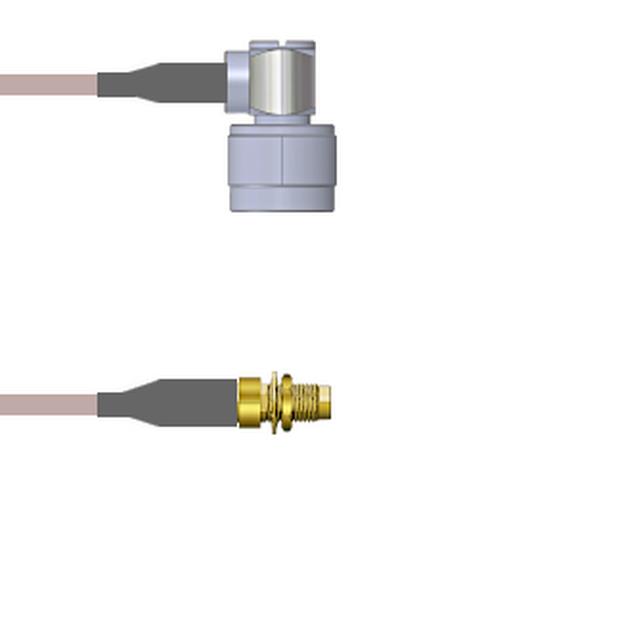

CBL ASSY SMA-NTYPE JACK-PLUG 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2G031000H084i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JACK-PLUG 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2G031000H084i

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2G0310 Series

Part	Cable Type	Style	1st Connector Mounting Feature	2nd Connector Mounting Type	1st Connector	2nd Connector	2nd Contact Gender	Overall Impedance	1st Contact Gender	Length	Length	Frequency - Max [Max]	1st Connector Mounting Type	Color	Features	Length
Amphenol Custom Cable Q-2G031000H036i	RG-142	SMA to N-Type	Bulkhead - Front Side Nut	Free Hanging (In-Line)	SMA Jack	N-Type Plug Right Angle	Male	50 Ohms	Female	91.44 cm	36 in	11 GHz	Panel Mount	Copper	Shielded
Amphenol Custom Cable Q-2G031000H048i	RG-142	SMA to N-Type	Bulkhead - Front Side Nut	Free Hanging (In-Line)	SMA Jack	N-Type Plug Right Angle	Male	50 Ohms	Female	1200 mm	48 in	11 GHz	Panel Mount	Copper	Shielded	4 ft
Amphenol Custom Cable Q-2G031000H001M	RG-142	SMA to N-Type	Bulkhead - Front Side Nut	Free Hanging (In-Line)	SMA Jack	N-Type Plug Right Angle	Male	50 Ohms	Female	1 m	39.4 in	11 GHz	Panel Mount	Copper	Shielded	3.3 ft
Amphenol Custom Cable Q-2G031000H060i	RG-142	SMA to N-Type	Bulkhead - Front Side Nut	Free Hanging (In-Line)	SMA Jack	N-Type Plug Right Angle	Male	50 Ohms	Female	1.5 m	5 '	11 GHz	Panel Mount	Copper	Shielded	5 ft
Amphenol Custom Cable Q-2G031000H072i	RG-142	SMA to N-Type	Bulkhead - Front Side Nut	Free Hanging (In-Line)	SMA Jack	N-Type Plug Right Angle	Male	50 Ohms	Female	1.8 m	72 in	11 GHz	Panel Mount	Copper	Shielded	6 ft
Amphenol Custom Cable Q-2G031000H006i	RG-142	SMA to N-Type	Bulkhead - Front Side Nut	Free Hanging (In-Line)	SMA Jack	N-Type Plug Right Angle	Male	50 Ohms	Female	152.4 mm	6 in	11 GHz	Panel Mount	Copper	Shielded
Amphenol Custom Cable Q-2G031000H0.5M	RG-142	SMA to N-Type	Bulkhead - Front Side Nut	Free Hanging (In-Line)	SMA Jack	N-Type Plug Right Angle	Male	50 Ohms	Female	50 cm	19.69 "	11 GHz	Panel Mount	Copper	Shielded
Amphenol Custom Cable Q-2G031000H084i	RG-142	SMA to N-Type	Bulkhead - Front Side Nut	Free Hanging (In-Line)	SMA Jack	N-Type Plug Right Angle	Male	50 Ohms	Female	2.1 m	84 in	11 GHz	Panel Mount	Copper	Shielded	7 ft
Amphenol Custom Cable Q-2G031000H2.5M	RG-142	SMA to N-Type	Bulkhead - Front Side Nut	Free Hanging (In-Line)	SMA Jack	N-Type Plug Right Angle	Male	50 Ohms	Female	2.5 m	98.4 in	11 GHz	Panel Mount	Copper	Shielded	8.2 '
Amphenol Custom Cable Q-2G031000H012i	RG-142	SMA to N-Type	Bulkhead - Front Side Nut	Free Hanging (In-Line)	SMA Jack	N-Type Plug Right Angle	Male	50 Ohms	Female	304.8 mm	12 "	11 GHz	Panel Mount	Copper	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 190.13
		25	$ 186.41
		50	$ 182.68
		100	$ 178.96
		250	$ 175.24

Description

General part information

Q-2G0310 Series

Cable Assembly Coaxial SMA to N-Type RG-142 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
