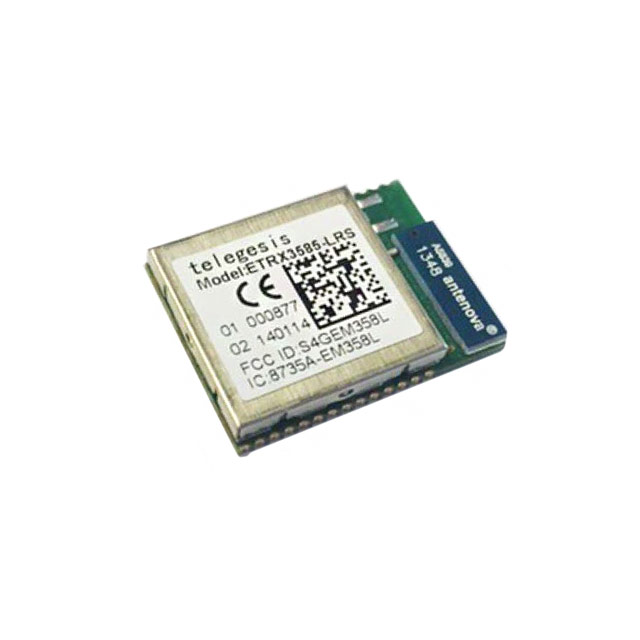

ETRX3587HR-LRS

Silicon Labs

RF TXRX MODULE 802.15.4U.FL SMD

Search across all available documentation for this part.

Silicon Labs

RF TXRX MODULE 802.15.4U.FL SMD

Technical Specifications

Parameters and characteristics for this part

Part	Current - Transmitting [Max]	Current - Transmitting [Min]	Antenna Type	Protocol	Power - Output	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	RF Family/Standard	Sensitivity	Frequency [Max]	Frequency [Min]	Serial Interfaces	Package / Case	Data Rate	Utilized IC / Part	Current - Receiving [Max]	Current - Receiving [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Transmitting	Current - Receiving	For Use With/Related Products	Frequency	Type	Supplied Contents	Memory Size [custom]	Memory Size [custom]
Silicon Labs ETRX3587	140 mA	52 mA	Integrated Chip	Zigbee®	20 dBm	85 °C	-40 °C	Surface Mount	802.15.4	-106 dBm	2.48 GHz	2.405 GHz	UART	Module	250 KBd	EM3587	31.5 mA	26.5 mA	2.1 V	3.6 V
Silicon Labs ETRX3587-LRS			Integrated Chip	Zigbee®	20 dBm	85 °C	-40 °C	Surface Mount	802.15.4	-106 dBm	2.5 GHz	2.4 GHz	JTAG	Module	20 kbps	EM3587			2.1 V	3.6 V	140 mA	33 mA
Silicon Labs ETRX3587ENKIT																							EM3587	2.4 GHz	802.15.4 (ZigBee®) Transceiver	Board(s)
Silicon Labs ETRX3587HR-LRS			Antenna Not Included U.FL	Zigbee®	20 dBm	85 °C	-40 °C	Surface Mount	802.15.4	-106 dBm			UART	Module	250 KBd	EM3585			2.1 V	3.6 V	140 mA	33 mA		2.4 GHz			512 kB	32 kB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

802.15.4 Zigbee® Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
