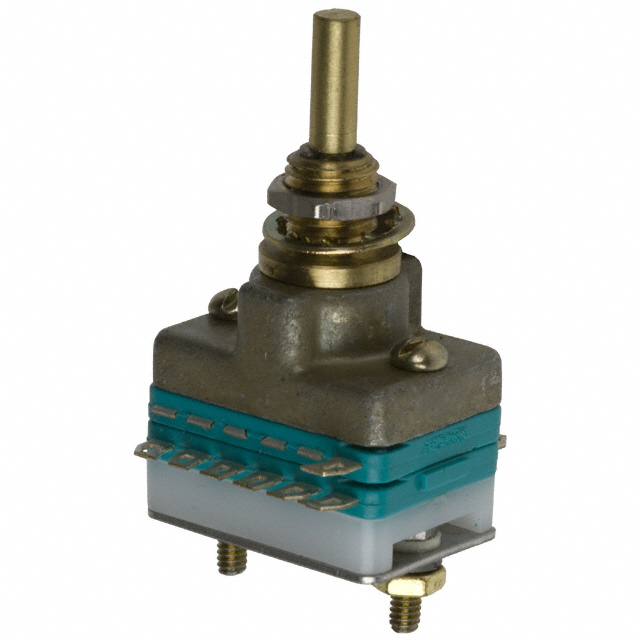

C1D0206N-A

Active

ELECTROSWITCH

SWITCH ROTARY 2-6POS 100MA 125V

Search across all available documentation for this part.

Active

ELECTROSWITCH

SWITCH ROTARY 2-6POS 100MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	C1D0206N-A

Actuator Length [x]	9.52 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Angle of Throw	30 °
Circuit per Deck [custom]	DP6T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	100 mA, 250 mA
Depth Behind Panel	20.6 mm
Index Stops	Adjustable
Number of Decks [custom]	1
Number of Poles per Deck	2
Number of Positions [Max]	6
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	6.76 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Number of Poles per Deck	Contact Finish	Termination Style	Contact Timing	Voltage Rating - DC	Current Rating (Amps)	Actuator Length [x]	Number of Decks	Number of Positions [Max]	Number of Positions [Min]	Index Stops	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Angle of Throw	Actuator Type [diameter]	Actuator Type	Mounting Type	Contact Material	Depth Behind Panel [z]	Circuit per Deck	Number of Decks [custom]	Depth Behind Panel	Circuit per Deck [custom]
ELECTROSWITCH C1D0206N-VA	1	Silver	PC Pin	Non-Shorting	28 V	100 mA 250 mA	9.52 mm	2	6	2	Adjustable	6.76 mm	125 V	30 °	3.17 mm	Flatted	Panel Mount Right Angle Through Hole	Brass	25.68 mm	SP6T
ELECTROSWITCH C1D0206N-A	2	Silver	Solder Lug	Non-Shorting	28 V	100 mA 250 mA	9.52 mm		6	2	Adjustable	6.76 mm	125 V	30 °	3.17 mm	Flatted		Brass			1	20.6 mm	DP6T
ELECTROSWITCH C1D0206S-A	2	Silver	Solder Lug	Shorting	28 V	100 mA 250 mA	9.52 mm		6	2	Adjustable	6.76 mm	125 V	30 °	3.17 mm	Flatted		Brass			1	20.6 mm	DP6T

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
