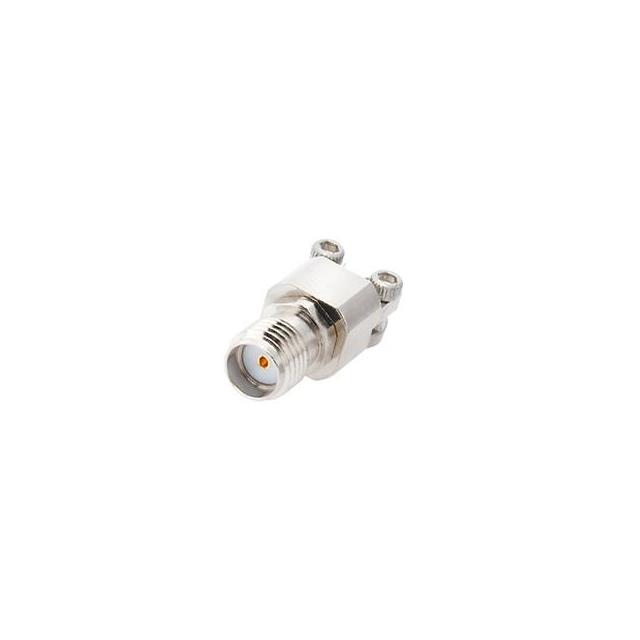

NE06FS001

Active

WITHWAVE CO LTD

END LAUNCH SMA CONNECTOR (NARROW

Search across all available documentation for this part.

Active

WITHWAVE CO LTD

END LAUNCH SMA CONNECTOR (NARROW

Technical Specifications

Parameters and characteristics for this part

END LAUNCH SMA CONNECTOR (NARROW

Part	Shield Termination	Contact Termination	Impedance	Frequency - Max [Max]	Number of Ports	Body Material	Housing Color	Center Contact Plating	Body Finish	Connector Style	Mounting Type	Center Contact Material	Connector Type
WITHWAVE CO LTD NE06FS001	Screw	Compression	50 Ohms	26.5 GHz	1	Brass	Silver	Gold	Nickel	SMA	Board Edge, End Launch	Beryllium Copper	Female Socket, Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Compression
