KE20.2100.151

Active

SCHURTER Inc.

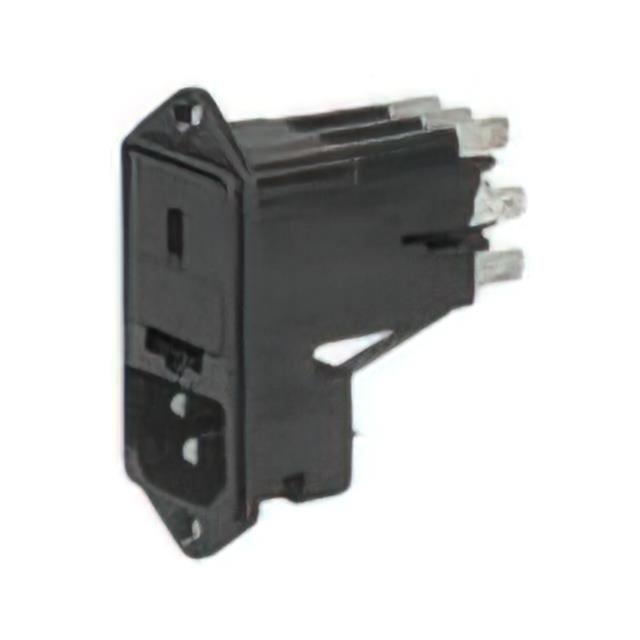

PWR ENT MOD RCPT IEC320-C14

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14

Technical Specifications

Parameters and characteristics for this part

Specification	KE20.2100.151

Accomodates a Fuse	True
Approval Agency	cURus, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Features	Voltage Selector
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Panel Cutout Dimensions [x]	27.5 mm
Panel Cutout Dimensions [y]	52.5 mm
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT MOD RCPT IEC320-C14

Part	Connector Style	Approval Agency	Fuse Holder, Drawer	Filter Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - Appliance Inlet	Ingress Protection	Features	Accomodates a Fuse	Material Flammability Rating	Current Rating - Appliance Inlet	Connector Type
SCHURTER Inc. KE20.2100.151	IEC 320-C14	cURus, ENEC	Drawer Sold Separate	Unfiltered - Commercial	27.5 mm	52.5 mm	250 VAC	IP40	Voltage Selector		UL94 V-0	10 A	Receptacle, Male Blades - Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 19.43

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14

Technical documentation and resources
