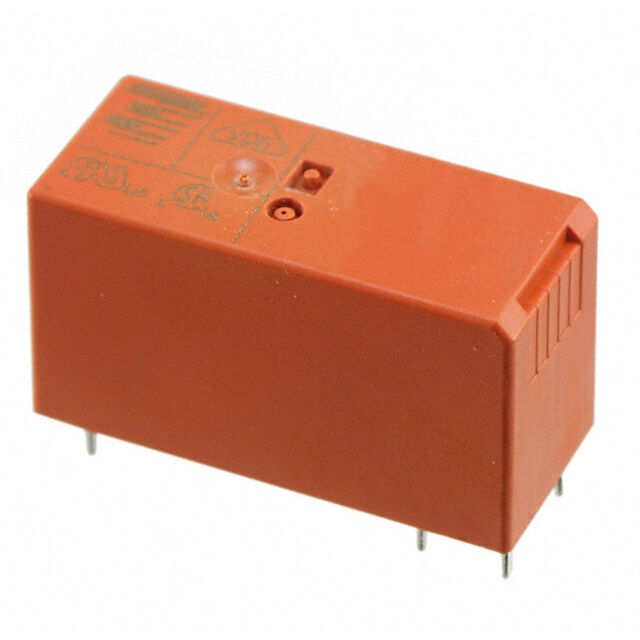

RTT3TA12

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 16A 12V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 16A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	RTT3TA12

Approval Agency	cURus, CQC, VDE, CSA
Coil Current	33.3 mA
Coil Insulation	Class F
Coil Resistance	360 Ohms
Coil Type	Latching, Single Coil
Coil Voltage	12 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Tungsten (W), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	16 A
Features	Test Button
Load - Max Switching	6400 VA
Mounting Type	Through Hole
Must Operate Voltage	8.4 VDC
Operate Time	10 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-10 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

Part	Coil Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Contact Form	Switching Voltage [Max]	Features	Release Time	Load - Max Switching	Contact Rating (Current)	Coil Voltage	Operate Time	Coil Current	Contact Material	Termination Style	Relay Type	Must Operate Voltage	Coil Resistance	Coil Type	Mounting Type
TE Connectivity Potter & Brumfield Relays RTT3TA12	Class F	-10 °C	85 °C	CQC CSA cURus VDE	SPST-NO (1 Form A)	400 VAC	Test Button	10 ms	6400 VA	16 A	12 VDC	10 ms	33.3 mA	Silver Tin Oxide (AgSnO) Tungsten (W)	PC Pin	General Purpose	8.4 VDC	360 Ohms	Latching Single Coil	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
