Q-0E04W0008024i

Active

Amphenol Custom Cable

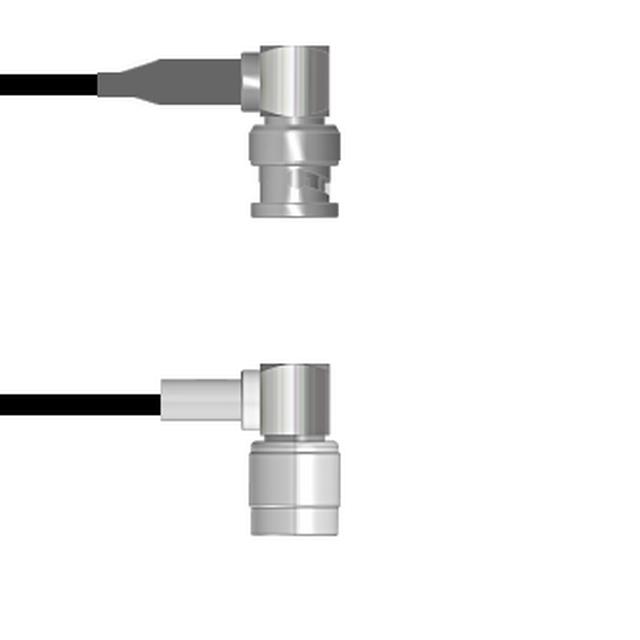

CBL ASSY BNC-TNC PLUG-PLUG 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0E04W0008024i

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC PLUG-PLUG 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0E04W0008024i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0E04W0 Series

Part	Color	2nd Connector Mounting Type	Frequency - Max [Max]	Length	Length	Length	1st Contact Gender	1st Connector	2nd Connector	Style	Overall Impedance	Features	Cable Type	1st Connector Mounting Type	2nd Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-0E04W0008072i	Black	Free Hanging (In-Line)	4 GHz	6 ft	72 in	1.8 m	Male	BNC Plug Right Angle	TNC Plug Right Angle	BNC to TNC	50 Ohms	Shielded	RG-58	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-0E04W0008048i	Black	Free Hanging (In-Line)	4 GHz	4 ft	48 in	1200 mm	Male	BNC Plug Right Angle	TNC Plug Right Angle	BNC to TNC	50 Ohms	Shielded	RG-58	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-0E04W00081.5M	Black	Free Hanging (In-Line)	4 GHz	4.9 ft	59.1 in	1.5 m	Male	BNC Plug Right Angle	TNC Plug Right Angle	BNC to TNC	50 Ohms	Shielded	RG-58	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-0E04W00080.5M	Black	Free Hanging (In-Line)	4 GHz		19.69 "	50 cm	Male	BNC Plug Right Angle	TNC Plug Right Angle	BNC to TNC	50 Ohms	Shielded	RG-58	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-0E04W00082.5M	Black	Free Hanging (In-Line)	4 GHz	8.2 '	98.4 in	2.5 m	Male	BNC Plug Right Angle	TNC Plug Right Angle	BNC to TNC	50 Ohms	Shielded	RG-58	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-0E04W0008036i	Black	Free Hanging (In-Line)	4 GHz		36 in	91.44 cm	Male	BNC Plug Right Angle	TNC Plug Right Angle	BNC to TNC	50 Ohms	Shielded	RG-58	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-0E04W0008.25M	Black	Free Hanging (In-Line)	4 GHz				Male	BNC Plug Right Angle	TNC Plug Right Angle	BNC to TNC	50 Ohms	Shielded	RG-58	Free Hanging (In-Line)	Male	9.843 "	250 mm
Amphenol Custom Cable Q-0E04W0008108i	Black	Free Hanging (In-Line)	4 GHz	9 ft	108 in	2.7 m	Male	BNC Plug Right Angle	TNC Plug Right Angle	BNC to TNC	50 Ohms	Shielded	RG-58	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-0E04W0008024i	Black	Free Hanging (In-Line)	4 GHz		24 "	609.6 mm	Male	BNC Plug Right Angle	TNC Plug Right Angle	BNC to TNC	50 Ohms	Shielded	RG-58	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-0E04W0008012i	Black	Free Hanging (In-Line)	4 GHz		12 "	304.8 mm	Male	BNC Plug Right Angle	TNC Plug Right Angle	BNC to TNC	50 Ohms	Shielded	RG-58	Free Hanging (In-Line)	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 79.73
		25	$ 78.18
		50	$ 76.63
		100	$ 75.08
		250	$ 73.53

Description

General part information

Q-0E04W0 Series

Cable Assembly Coaxial BNC to TNC RG-58 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
