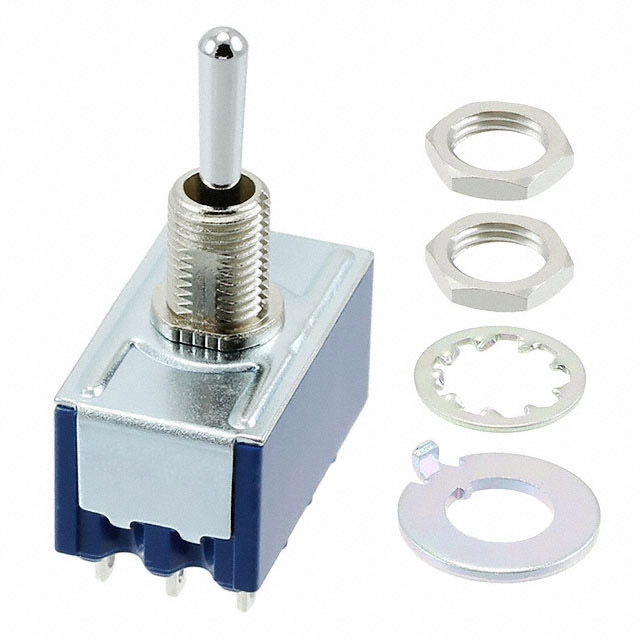

8A4111-Z

Obsolete

Nidec Components Corporation

SWITCH TOGGLE DP3T 6A 125V

Search across all available documentation for this part.

Obsolete

Nidec Components Corporation

SWITCH TOGGLE DP3T 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	8A4111-Z

Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	DP3T
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Features	Jumper needed to achieve triple throw
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

SWITCH TOGGLE DP3T 6A 125V

Part	Bushing Thread	Voltage Rating - AC	Features	Current Rating (Amps)	Termination Style	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Illumination	Circuit	Voltage Rating - DC	Electrical Life	Switch Function
Nidec Components Corporation 8A4111-Z	1/4-40	125 V	Jumper needed to achieve triple throw	4 A, 6 A	Solder Lug	6.5 mm	85 °C	-20 C	Standard Round	Non-Illuminated	DP3T	30 V	25000 Steps	On-On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch DP3T Panel Mount
