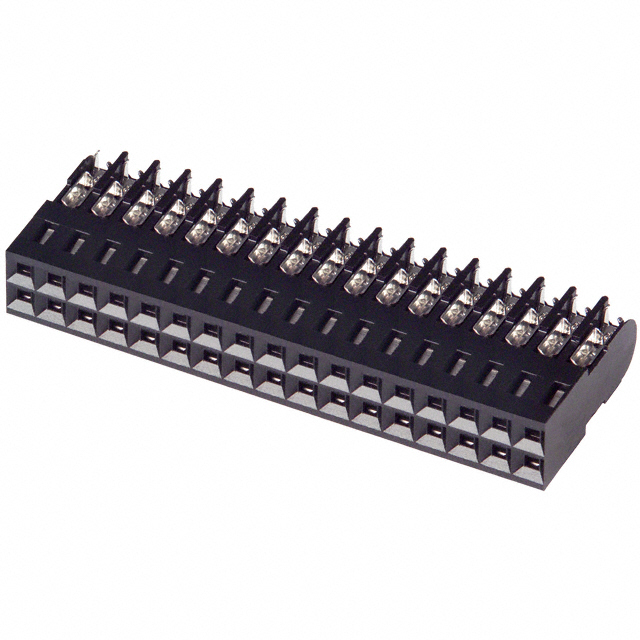

6-102398-5
ActiveTE Connectivity AMP Connectors
CONN RCPT 34P IDC 22-26AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6-102398-5
ActiveTE Connectivity AMP Connectors
CONN RCPT 34P IDC 22-26AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6-102398-5 | 102398 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Type | Female Socket | Female Socket |
| Features | Closed End | Closed End |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 34 | 6 - 60 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Row Spacing | 2.54 mm | 2.54 mm |
| Row Spacing [x] | 0.1 in | 0.1 in |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
| Wire Type | Discrete or Ribbon Cable | Discrete or Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 19.83 | |
| 10 | $ 19.42 | |||
| 25 | $ 18.90 | |||
| 70 | $ 17.97 | |||
| 140 | $ 16.22 | |||
| 280 | $ 16.11 | |||
102398 Series
CONN RCPT 12P IDC 22-26AWG GOLD
| Part | Number of Rows | Color | Number of Positions | Features | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Mounting Type | Contact Type | Row Spacing [x] | Row Spacing | Wire Gauge [Min] | Wire Gauge [Max] | Cable Termination | Wire Type | Pitch [x] | Pitch [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 102398-4 | 2 | Black | 12 | Closed End | Receptacle | 0.76 Ám | 30 Áin | Gold | Free Hanging (In-Line) | Female Socket | 0.1 in | 2.54 mm | 22 AWG | 26 AWG | IDC | Discrete or Ribbon Cable | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 102398-7 | 2 | Black | 18 | Closed End | Receptacle | 0.76 Ám | 30 Áin | Gold | Free Hanging (In-Line) | Female Socket | 0.1 in | 2.54 mm | 22 AWG | 26 AWG | IDC | Discrete or Ribbon Cable | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 7-102398-8 | 2 | Black | 60 | Closed End | Receptacle | 0.76 Ám | 30 Áin | Gold | Free Hanging (In-Line) | Female Socket | 0.1 in | 2.54 mm | 22 AWG | 26 AWG | IDC | Discrete or Ribbon Cable | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 102398-3 | 2 | Black | 10 | Closed End | Receptacle | 0.76 Ám | 30 Áin | Gold | Free Hanging (In-Line) | Female Socket | 0.1 in | 2.54 mm | 22 AWG | 26 AWG | IDC | Discrete or Ribbon Cable | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 102398-2 | 2 | Black | 8 | Closed End | Receptacle | 0.76 Ám | 30 Áin | Gold | Free Hanging (In-Line) | Female Socket | 0.1 in | 2.54 mm | 22 AWG | 26 AWG | IDC | Discrete or Ribbon Cable | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 6-102398-5 | 2 | Black | 34 | Closed End | Receptacle | 0.76 Ám | 30 Áin | Gold | Free Hanging (In-Line) | Female Socket | 0.1 in | 2.54 mm | 22 AWG | 26 AWG | IDC | Discrete or Ribbon Cable | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 5-102398-1 | 2 | Black | 6 | Closed End | Receptacle | 0.76 Ám | 30 Áin | Gold | Free Hanging (In-Line) | Female Socket | 0.1 in | 2.54 mm | 22 AWG | 26 AWG | IDC | Discrete or Ribbon Cable | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 7-102398-3 | 2 | Black | 50 | Closed End | Receptacle | 0.76 Ám | 30 Áin | Gold | Free Hanging (In-Line) | Female Socket | 0.1 in | 2.54 mm | 22 AWG | 26 AWG | IDC | Discrete or Ribbon Cable | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 6-102398-0 | 2 | Black | 24 | Closed End | Receptacle | 0.76 Ám | 30 Áin | Gold | Free Hanging (In-Line) | Female Socket | 0.1 in | 2.54 mm | 22 AWG | 26 AWG | IDC | Discrete or Ribbon Cable | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 1-102398-1 | 2 | Black | 26 | Closed End | Receptacle | 0.76 Ám | 30 Áin | Gold | Free Hanging (In-Line) | Female Socket | 0.1 in | 2.54 mm | 22 AWG | 26 AWG | IDC | Discrete or Ribbon Cable | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 102398-6 | 2 | Black | Closed End | Receptacle | 0.76 Ám | 30 Áin | Gold | Free Hanging (In-Line) | Female Socket | 0.1 in | 2.54 mm | 22 AWG | 26 AWG | IDC | Discrete or Ribbon Cable | 2.54 mm | 0.1 in | 16 | |
TE Connectivity AMP Connectors 5-102398-6 | 2 | Black | Closed End | Receptacle | 0.76 Ám | 30 Áin | Gold | Free Hanging (In-Line) | Female Socket | 0.1 in | 2.54 mm | 22 AWG | 26 AWG | IDC | Discrete or Ribbon Cable | 2.54 mm | 0.1 in | 16 | |
TE Connectivity AMP Connectors 6-102398-1 | 2 | Black | 26 | Closed End | Receptacle | 0.76 Ám | 30 Áin | Gold | Free Hanging (In-Line) | Female Socket | 0.1 in | 2.54 mm | 22 AWG | 26 AWG | IDC | Discrete or Ribbon Cable | 2.54 mm | 0.1 in |
Description
General part information
102398 Series
34 Position Rectangular Receptacle Connector IDC Gold 22-26 AWG
