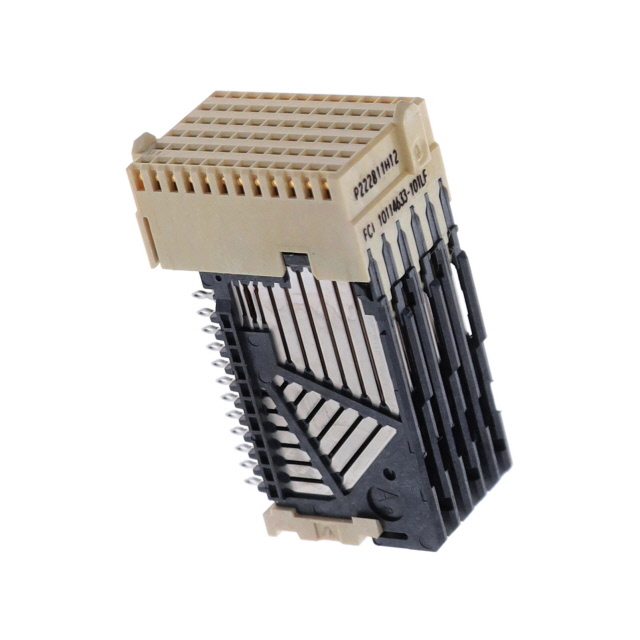

10114633-101LF

Active

Amphenol ICC (FCI)

CONN BACKPLANE

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN BACKPLANE

Technical Specifications

Parameters and characteristics for this part

Specification	10114633-101LF

Color	Natural
Connector Style	High Speed
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Current Rating (Amps)	500 mA
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	6
Number of Positions	72
Number of Positions Loaded	All
Number of Rows	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit

Part	Connector Type	Mounting Type	Contact Finish	Number of Positions Loaded	Termination	Material Flammability Rating	Connector Style	Pitch [x]	Pitch [x]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Columns	Number of Rows	Number of Positions
Amphenol ICC (FCI) 10114633-101LF	Receptacle Female Sockets	Board Edge Right Angle Through Hole	Gold	All	Press-Fit	UL94 V-0	High Speed	0.079 in	2 mm	500 mA	85 °C	-55 °C	Natural	6	12	72

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

72 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Natural High Speed
