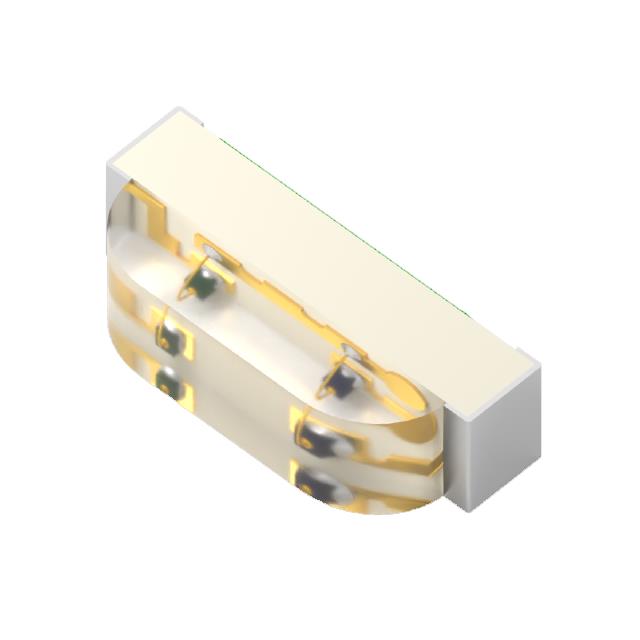

Specification	APFA2507LQBDSEEZGKC

Color	Blue (RGB), Green, Red
Configuration	Common Anode
Current - Test (Blue)	2 mA
Current - Test (Green)	2 mA
Current - Test (Red)	2 mA
Current - Test Colors	Green, Red, Blue
Height (Max)	0.85 mm
Lens Color	Colorless
Lens Length	2.1 mm
Lens Style	Domed Top, Rectangle
Lens Transparency	Clear
Lens Width	0.7 mm
Millicandela Rating (Blue)	10 md
Millicandela Rating (Green)	60 mcd
Millicandela Rating (Red)	10 mcd
Millicandela Rating Colors	Blue, Green, Red
Mounting Type	Right Angle, Surface Mount
Package / Case	4-SMD, No Lead
Package Name	4-SMD
Size / Dimension Length	2.5 mm
Size / Dimension Width	1 mm
Viewing Angle (Blue)	140 °
Viewing Angle (Green)	130 °
Viewing Angle (Red)	110 °
Voltage - Forward (Vf) (Typ) (Blue)	2.7 V
Voltage - Forward (Vf) (Typ) (Green)	2.7 V
Voltage - Forward (Vf) (Typ) (Red)	1.8 V
Voltage - Forward (Vf) (Typ) Color	Red, Green, Blue
Wavelength - Dominant (Blue)	465 nm
Wavelength - Dominant (Green)	525 nm
Wavelength - Dominant (Red)	621 nm
Wavelength - Dominant Color	Green, Red, Blue
Wavelength - Peak (Blue)	460 nm
Wavelength - Peak (Green)	515 nm
Wavelength - Peak (Red)	630 nm
Wavelength - Peak Colors	Green, Red, Blue

APFA2507 Series

Part	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Value 1)	Voltage - Forward (Vf) (Typ) (Red)	Voltage - Forward (Vf) (Typ) (Green)	Height (Max)	Package Name	Current - Test Colors	Current - Test	Current - Test (Red)	Current - Test (Green)	Package / Case	Lens Style	Millicandela Rating Colors	Millicandela Rating (Red)	Millicandela Rating (Yellow)	Millicandela Rating (Green)	Configuration	Size / Dimension Width	Size / Dimension Length	Color	Wavelength - Peak Colors	Wavelength - Peak (Green)	Wavelength - Peak (Red)	Wavelength - Peak (Yellow)	Lens Transparency	Lens Color	Wavelength - Dominant Color	Wavelength - Dominant (Green)	Wavelength - Dominant (Red)	Viewing Angle	Lens Length	Lens Width	Mounting Type	Viewing Angle (Green)	Viewing Angle (Red)	Viewing Angle (Blue)	Wavelength - Peak (Blue)	Wavelength - Dominant (Blue)	Current - Test (Blue)	Millicandela Rating (Blue)	Voltage - Forward (Vf) (Typ) (Blue)
Kingbright APFA2507LSURKSYKZGKC	Green Red Yellow	1.85 V	1.75 V	2.65 V	0.85 mm	4-SMD	Green Red Yellow	2 mA	2 mA	2 mA	4-SMD No Lead	Domed Top Rectangle	Green Red Yellow	30 mcd	15 mcd	60 mcd	Common Anode	1 mm	2.5 mm	Green Red Yellow	Green Red Yellow	515 nm	645 nm	590 nm	Clear	Colorless	Green Red Yellow	525 nm	630 nm	115 ° 125 ° 130 °	2.1 mm	0.7 mm	Right Angle Surface Mount
Kingbright APFA2507QBDSEEZGKC	Blue Green Red		2 V	3.3 V	0.85 mm	4-SMD	Blue Green Red		20 mA	20 mA	4-SMD No Lead	Domed Top Rectangle	Blue Green Red	110 mcd		400 mcd	Common Anode	1 mm	2.5 mm	Blue (RGB) Green Red	Blue Green Red	515 nm	630 nm		Clear	Colorless	Blue Green Red	525 nm	621 nm		2.1 mm	0.7 mm	Right Angle Surface Mount	130 °	110 °	140 °	460 nm	465 nm	20 mA	65 mcd	3.3 V
Kingbright APFA2507LQBDSEEZGKC	Blue Green Red		1.8 V	2.7 V	0.85 mm	4-SMD	Blue Green Red		2 mA	2 mA	4-SMD No Lead	Domed Top Rectangle	Blue Green Red	10 mcd		60 mcd	Common Anode	1 mm	2.5 mm	Blue (RGB) Green Red	Blue Green Red	515 nm	630 nm		Clear	Colorless	Blue Green Red	525 nm	621 nm		2.1 mm	0.7 mm	Right Angle Surface Mount	130 °	110 °	140 °	460 nm	465 nm	2 mA	10 md	2.7 V
