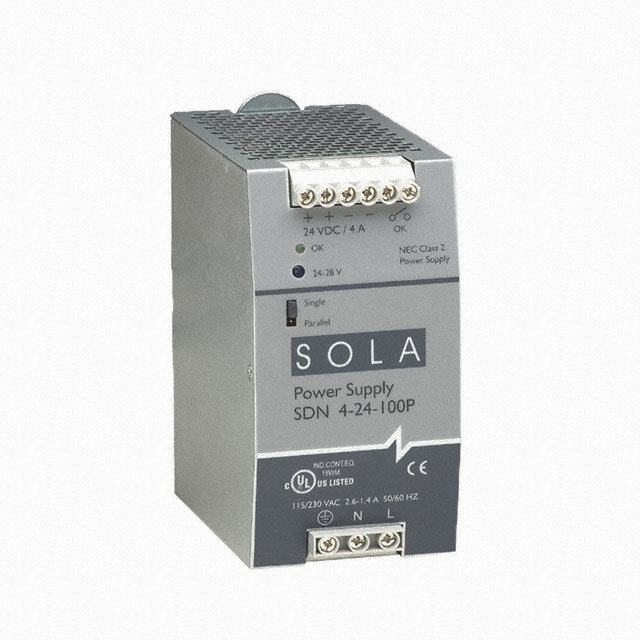

SDN4-24-100LP

Active

SolaHD

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 92 W, 24 VDC, 3.8 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

SDN4-24-100LP

Active

SolaHD

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 92 W, 24 VDC, 3.8 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDN4-24-100LP

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Max]	132 VAC
AC Voltage - Input [Min]	176 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CE, cURus, cULus
Current - Output (Max) [Max]	3.8 A
DC Voltage - Input (Max) [Max]	375 V
DC Voltage - Input (Min) [Min]	210 V
Efficiency	88 %
Features	Adjustable Output, IP20
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	96 W
Size / Dimension [x]	4.55 in
Size / Dimension [x]	115.6 mm
Size / Dimension [y]	65 mm
Size / Dimension [y]	2.56 "
Size / Dimension [z]	4.88 "
Size / Dimension [z]	124 mm
Voltage - Output 1	24 V

SDN4 Series

Part	AC Voltage - Input [Min]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Features	Efficiency	Voltage - Output 1	DC Voltage - Input (Min) [Min]	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	DC Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Applications
SolaHD SDN4-24-100LP	176 VAC	264 VAC	85 VAC	132 VAC	Adjustable Output IP20	88 %	24 V	210 V	AC or DC	-10 °C	70 °C	CE cULus cURus	375 V	3.8 A	96 W	65 mm	4.88 "	4.55 in	124 mm	115.6 mm	2.56 "	1	Hazardous Locations Industrial ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 336.67
		16	$ 325.06
Newark	Each	1	$ 371.34
		5	$ 345.34

Description

General part information

SDN4 Series

The SDN4-24-100LP is a 24V/92W 1-output DIN-rail mount AC to DC Power Supply features an industrial grade design, power factor correction and parallel capability standard. Narrow width on rail for space critical applications. The SDN DIN-rail power supplies provide industry leading performance. Sag immunity, transient suppression and noise tolerant, the SDN-series ensures compatibility in demanding applications. Power factor correction to meet European directives, hazardous location approvals and optional redundant accessories allow the SDN-series to be used in a wide variety of applications. Wide operation temperature range, high tolerance to shock and vibration and reliable design make the SDN-series the preferred choice of users everywhere. This power supply output is fixed and can be adjustable.
