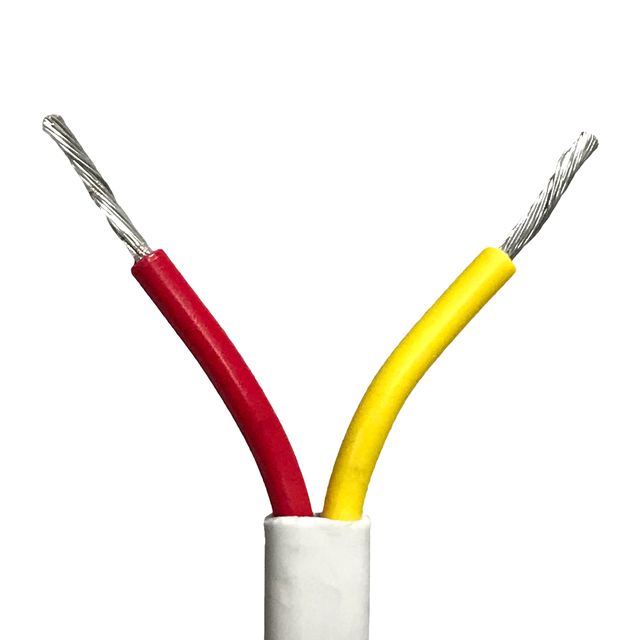

16DBCRED/YEL100

Active

Remington Industries

CABLE 2COND 16AWG WHITE 100'

Search across all available documentation for this part.

Active

Remington Industries

CABLE 2COND 16AWG WHITE 100'

Technical Specifications

Parameters and characteristics for this part

Specification	16DBCRED/YEL100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	26
Features	Oil Resistant, Abrasion Resistant
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	75 °C
Ratings	UL Style 1426
Usage	Marine
Wire Gauge	16 AWG

Part	Ratings	Jacket (Insulation) Material	Number of Conductors	Conductor Material	Conductor Insulation	Cable Type	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]
Remington Industries 16DBCRED/YEL250	UL Style 1426	Poly-Vinyl Chloride (PVC)	2	Copper Tinned	Poly-Vinyl Chloride (PVC)	Multi-Conductor	16 AWG	75 °C	105 ░C	Marine	3000 "	76.2 m	0.762 mm	0.03 in	Abrasion Resistant Oil Resistant	30 AWG	26
Remington Industries 16DBCRED/BLA25	UL Style 1426	Poly-Vinyl Chloride (PVC)	2	Copper Tinned	Poly-Vinyl Chloride (PVC)	Multi-Conductor	16 AWG	75 °C	105 ░C	Marine			0.762 mm	0.03 in	Abrasion Resistant Oil Resistant	30 AWG	26	25 ft	7.62 m
Remington Industries 16DBCRED/YEL100	UL Style 1426	Poly-Vinyl Chloride (PVC)	2	Copper Tinned	Poly-Vinyl Chloride (PVC)	Multi-Conductor	16 AWG	75 °C	105 ░C	Marine			0.762 mm	0.03 in	Abrasion Resistant Oil Resistant	30 AWG	26	100 ft	30.5 m
Remington Industries 16DBCRED/YEL25	UL Style 1426	Poly-Vinyl Chloride (PVC)	2	Copper Tinned	Poly-Vinyl Chloride (PVC)	Multi-Conductor	16 AWG	75 °C	105 ░C	Marine			0.762 mm	0.03 in	Abrasion Resistant Oil Resistant	30 AWG	26	25 ft	7.62 m
Remington Industries 16DBCRED/BLA100	UL Style 1426	Poly-Vinyl Chloride (PVC)	2	Copper Tinned	Poly-Vinyl Chloride (PVC)	Multi-Conductor	16 AWG	75 °C	105 ░C	Marine			0.762 mm	0.03 in	Abrasion Resistant Oil Resistant	30 AWG	26	100 ft	30.5 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 81.81

General part information

2 Conductor Multi-Conductor Cable White 16 AWG 100.0' (30.5m)

Technical documentation and resources
