SY87739LHY-TR

Active

Microchip Technology

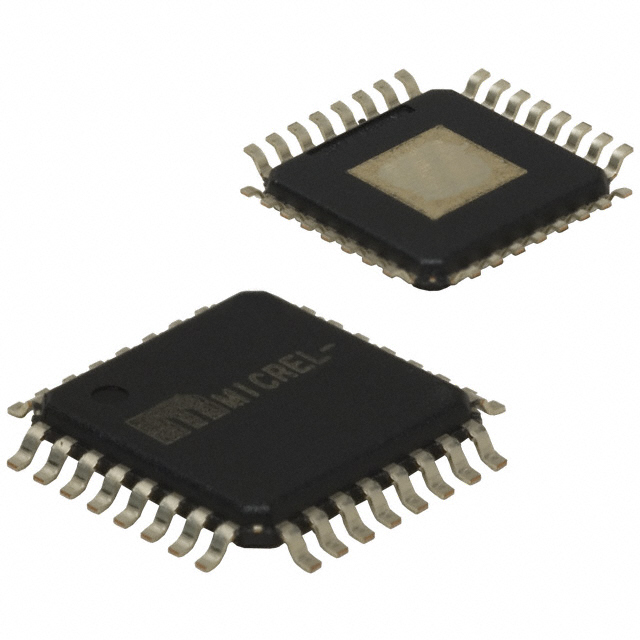

IC SYNTHESIZER FRACTION N 32TQFP

Search across all available documentation for this part.

Active

Microchip Technology

IC SYNTHESIZER FRACTION N 32TQFP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 22.57

General part information

Ethernet, Fibre Channel, SONET/SDH/ATM Fractional Synthesizer IC 729MHz 1 Output 32-TQFP-EP (7x7)

Technical documentation and resources

Specification	SY87739LHY-TR	SY87739 Series

Differential - Input:Output [custom]	True	True
Differential - Input:Output [custom]	True	True
Frequency - Max [Max]	729 MHz	729 MHz
Input	PECL	PECL
Main Purpose	Fibre Channel, SONET/SDH/ATM, Ethernet	Fibre Channel, SONET/SDH/ATM, Ethernet
Mounting Type	Surface Mount	Surface Mount
Number of Circuits	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	PECL	PECL
Package / Case	32-TQFP Exposed Pad	32-TQFP Exposed Pad
PLL	True	True
Ratio - Input:Output [custom]	1:1	1:1
Supplier Device Package	32-TQFP-EP	32-TQFP-EP
Supplier Device Package [custom]	7x7	7x7
Voltage - Supply [Max]	3.45 V	3.45 V
Voltage - Supply [Min]	3.15 V	3.15 V

Part	Number of Circuits	PLL	Ratio - Input:Output [custom]	Frequency - Max [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Output	Operating Temperature [Max]	Operating Temperature [Min]	Differential - Input:Output [custom]	Differential - Input:Output [custom]	Mounting Type	Input	Main Purpose	Supplier Device Package [custom]	Supplier Device Package	Package / Case
Microchip Technology SY87739LHY	1		1:1	729 MHz	3.45 V	3.15 V	PECL	85 °C	-40 °C			Surface Mount	PECL	Ethernet, Fibre Channel, SONET/SDH/ATM	7x7	32-TQFP-EP	32-TQFP Exposed Pad
Microchip Technology SY87739LHY-TR	1		1:1	729 MHz	3.45 V	3.15 V	PECL	85 °C	-40 °C			Surface Mount	PECL	Ethernet, Fibre Channel, SONET/SDH/ATM	7x7	32-TQFP-EP	32-TQFP Exposed Pad
