PAT-20-HD-B-20-S-9

Active

FiberSource, Inc

LCU-SCA SM 2MM YELLOW SIMPLX 20M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PAT-20-HD-B-20-S-9

Active

FiberSource, Inc

LCU-SCA SM 2MM YELLOW SIMPLX 20M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PAT-20-HD-B-20-S-9	PAT-20 Series

1st Connector	LC/UPC	LC/APC, LC Duplex, SC/APC, SC Duplex, LC/UPC
2nd Connector	SC/APC	LC/UPC, SC Duplex, LC Duplex, SC/UPC, SC/APC
Cable Diameter [diameter]	2 mm	2 - 3 mm
Cable Diameter [diameter]	0.08 in	0.08 - 0.12 in
Cable Type	-	Bend Insensitive Fiber (BIF)
Color - Cable	Yellow	Yellow
Color - Connectors	-	Green, Blue
Features	-	Low Smoke
Fiber Type	-	9/125, 50/125
Insertion Loss	0.2 dB	0.2 - 0.3 dB
Jacket (Insulation) Material	-	Flame Retardant Non-Corrosive (FRNC)
Length - Overall [x]	65.6 ft	65.6 ft
Length - Overall [x]	20 m	20 m
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Ratings	-	LSZH
Return Loss	65 dB, 55 dB	55 - 65 dB
Type	Singlemode, Simplex	Singlemode, Simplex, Duplex, OM3, Multimode

PAT-20 Series

LCA-LCU SM 2MM YELLOW SIMPLX 20M

Part	Insertion Loss	Length - Overall [x]	Length - Overall [x]	Type	Return Loss	Cable Diameter [diameter]	Cable Diameter [diameter]	2nd Connector	Color - Cable	Operating Temperature [Max]	Operating Temperature [Min]	1st Connector	Features	Color - Connectors	Fiber Type	Jacket (Insulation) Material	Ratings	Cable Type
FiberSource, Inc PAT-20-JH-B-20-S-9	0.2 dB	65.6 ft	20 m	Simplex, Singlemode	55 dB, 65 dB	2 mm	0.08 in	LC/UPC	Yellow	85 °C	-40 °C	LC/APC
FiberSource, Inc PAT-20-JD-B-20-D-9	0.3 dB	65.6 ft	20 m	Duplex, Singlemode	65 dB	2 mm	0.08 in	SC Duplex	Yellow	85 °C	-40 °C	LC Duplex	Low Smoke	Blue, Green	9/125	Flame Retardant Non-Corrosive (FRNC)	LSZH	Bend Insensitive Fiber (BIF)
FiberSource, Inc PAT-20-HC-B-20-D-9	0.3 dB	65.6 ft	20 m	Duplex, Singlemode	55 dB	2 mm	0.08 in	SC Duplex	Yellow	85 °C	-40 °C	LC Duplex		Blue
FiberSource, Inc PAT-20-HH-B-20-D-9	0.3 dB	65.6 ft	20 m	Duplex, Singlemode	55 dB	2 mm	0.08 in	LC Duplex	Yellow	85 °C	-40 °C	LC Duplex		Blue
FiberSource, Inc PAT-20-DC-B-30-S-9	0.2 dB	65.6 ft	20 m	Simplex, Singlemode	55 dB, 65 dB	3 mm	0.12 in	SC/UPC	Yellow	85 °C	-40 °C	SC/APC
FiberSource, Inc PAT-20-DD-B-20-S-9	0.2 dB	65.6 ft	20 m	Simplex, Singlemode	55 dB, 65 dB	2 mm	0.08 in	SC/APC	Yellow	85 °C	-40 °C	SC/APC
FiberSource, Inc PAT-20-DD-B-20-D-9	0.3 dB	65.6 ft	20 m	Duplex, Singlemode	65 dB	2 mm	0.08 in	SC Duplex	Yellow	85 °C	-40 °C	SC Duplex		Blue
FiberSource, Inc PAT-20-NL-F-20-D-A		65.6 ft	20 m	Duplex, Multimode, OM3		2 mm	0.08 in	SC Duplex		85 °C	-40 °C	LC Duplex		Blue	50/125
FiberSource, Inc PAT-20-JH-B-20-D-9	0.3 dB	65.6 ft	20 m	Duplex, Singlemode	65 dB	2 mm	0.08 in	LC Duplex	Yellow	85 °C	-40 °C	LC Duplex		Blue
FiberSource, Inc PAT-20-HD-B-20-S-9	0.2 dB	65.6 ft	20 m	Simplex, Singlemode	55 dB, 65 dB	2 mm	0.08 in	SC/APC	Yellow	85 °C	-40 °C	LC/UPC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 22.03
		30	$ 21.39
		50	$ 20.77
		80	$ 20.16
		100	$ 19.58
		250	$ 19.01
		500	$ 18.45
		1000	$ 1.91

Description

General part information

PAT-20 Series

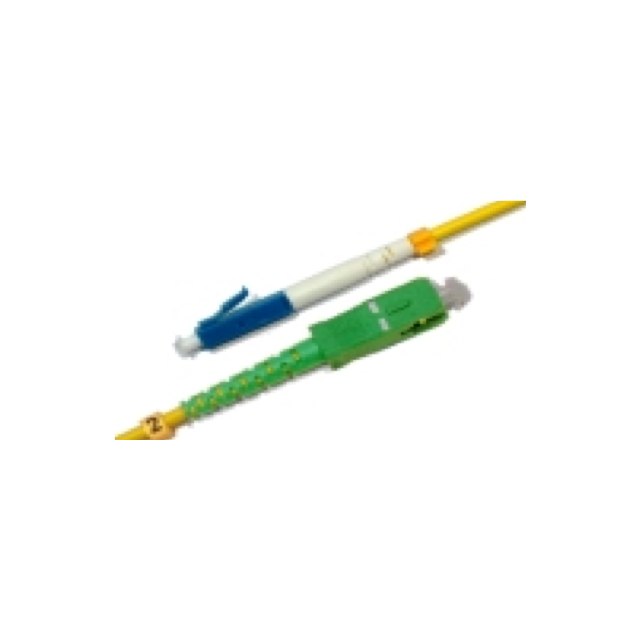

Cable Fiber Optic LC/UPC To SC/APC 65.6' (20.0m)
