PAT-20-DC-B-30-S-9

Active

FiberSource, Inc

SCA-SCU SM 3MM YELLOW SIMPLX 20M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PAT-20-DC-B-30-S-9

Active

FiberSource, Inc

SCA-SCU SM 3MM YELLOW SIMPLX 20M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 21.87
		30	$ 21.35
		50	$ 20.61
		80	$ 20.02
		100	$ 19.43
		250	$ 18.87
		500	$ 18.31
		1000	$ 17.78

Description

General part information

PAT-20 Series

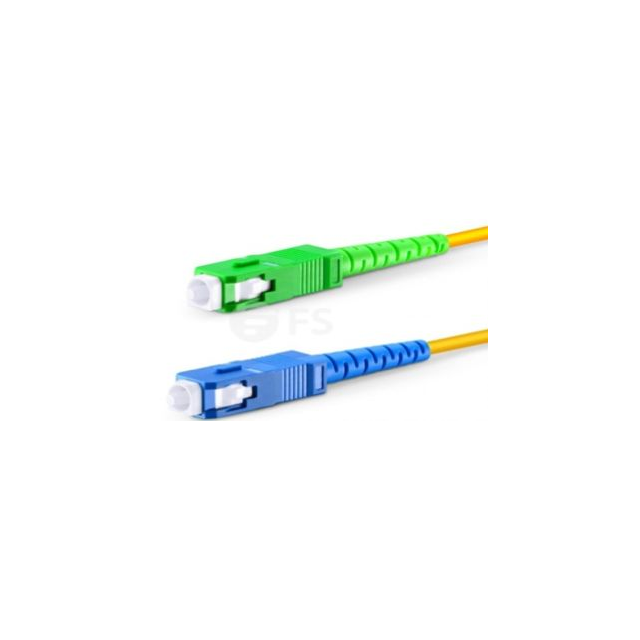

Cable Fiber Optic SC/APC To SC/UPC 65.6' (20.0m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PAT-20-DC-B-30-S-9	PAT-20 Series

1st Connector	SC/APC	LC/APC, LC Duplex, SC/APC, SC Duplex, LC/UPC
2nd Connector	SC/UPC	LC/UPC, SC Duplex, LC Duplex, SC/UPC, SC/APC
Cable Diameter [diameter]	3 mm	2 - 3 mm
Cable Diameter [diameter]	0.12 in	0.08 - 0.12 in
Cable Type	-	Bend Insensitive Fiber (BIF)
Color - Cable	Yellow	Yellow
Color - Connectors	-	Green, Blue
Features	-	Low Smoke
Fiber Type	-	9/125, 50/125
Insertion Loss	0.2 dB	0.2 - 0.3 dB
Jacket (Insulation) Material	-	Flame Retardant Non-Corrosive (FRNC)
Length - Overall [x]	65.6 ft	65.6 ft
Length - Overall [x]	20 m	20 m
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Ratings	-	LSZH
Return Loss	65 dB, 55 dB	55 - 65 dB
Type	Singlemode, Simplex	Singlemode, Simplex, Duplex, OM3, Multimode

PAT-20 Series

LCA-LCU SM 2MM YELLOW SIMPLX 20M

Part	Insertion Loss	Length - Overall [x]	Length - Overall [x]	Type	Return Loss	Cable Diameter [diameter]	Cable Diameter [diameter]	2nd Connector	Color - Cable	Operating Temperature [Max]	Operating Temperature [Min]	1st Connector	Features	Color - Connectors	Fiber Type	Jacket (Insulation) Material	Ratings	Cable Type
FiberSource, Inc PAT-20-JH-B-20-S-9	0.2 dB	65.6 ft	20 m	Simplex, Singlemode	55 dB, 65 dB	2 mm	0.08 in	LC/UPC	Yellow	85 °C	-40 °C	LC/APC
FiberSource, Inc PAT-20-JD-B-20-D-9	0.3 dB	65.6 ft	20 m	Duplex, Singlemode	65 dB	2 mm	0.08 in	SC Duplex	Yellow	85 °C	-40 °C	LC Duplex	Low Smoke	Blue, Green	9/125	Flame Retardant Non-Corrosive (FRNC)	LSZH	Bend Insensitive Fiber (BIF)
FiberSource, Inc PAT-20-HC-B-20-D-9	0.3 dB	65.6 ft	20 m	Duplex, Singlemode	55 dB	2 mm	0.08 in	SC Duplex	Yellow	85 °C	-40 °C	LC Duplex		Blue
FiberSource, Inc PAT-20-HH-B-20-D-9	0.3 dB	65.6 ft	20 m	Duplex, Singlemode	55 dB	2 mm	0.08 in	LC Duplex	Yellow	85 °C	-40 °C	LC Duplex		Blue
FiberSource, Inc PAT-20-DC-B-30-S-9	0.2 dB	65.6 ft	20 m	Simplex, Singlemode	55 dB, 65 dB	3 mm	0.12 in	SC/UPC	Yellow	85 °C	-40 °C	SC/APC
FiberSource, Inc PAT-20-DD-B-20-S-9	0.2 dB	65.6 ft	20 m	Simplex, Singlemode	55 dB, 65 dB	2 mm	0.08 in	SC/APC	Yellow	85 °C	-40 °C	SC/APC
FiberSource, Inc PAT-20-DD-B-20-D-9	0.3 dB	65.6 ft	20 m	Duplex, Singlemode	65 dB	2 mm	0.08 in	SC Duplex	Yellow	85 °C	-40 °C	SC Duplex		Blue
FiberSource, Inc PAT-20-NL-F-20-D-A		65.6 ft	20 m	Duplex, Multimode, OM3		2 mm	0.08 in	SC Duplex		85 °C	-40 °C	LC Duplex		Blue	50/125
FiberSource, Inc PAT-20-JH-B-20-D-9	0.3 dB	65.6 ft	20 m	Duplex, Singlemode	65 dB	2 mm	0.08 in	LC Duplex	Yellow	85 °C	-40 °C	LC Duplex		Blue
FiberSource, Inc PAT-20-HD-B-20-S-9	0.2 dB	65.6 ft	20 m	Simplex, Singlemode	55 dB, 65 dB	2 mm	0.08 in	SC/APC	Yellow	85 °C	-40 °C	LC/UPC
