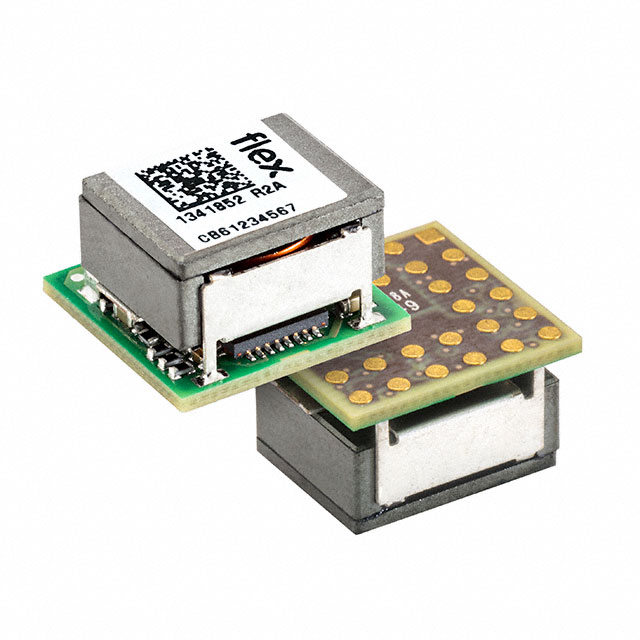

BMR4613001/001

Active

Flex Power Modules

POWER MODULE/POWER SUPPLY ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BMR4613001/001

Active

Flex Power Modules

POWER MODULE/POWER SUPPLY ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMR4613001/001	BMR461 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max) [Max]	12 A	6 - 18 A
Efficiency	95.8 %	91.6 - 95.8 %
Features	Remote Sense, Adjustable Output, PMBus™, Remote On/Off	Remote Sense, Adjustable Output, PMBus™, Remote On/Off
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	32-BLGA Module	32-BLGA Module
Power (Watts)	60 W	30 - 60 W
Size / Dimension [x]	0.48 in	0.48 in
Size / Dimension [x]	12.2 mm	12.2 mm
Size / Dimension [y]	0.48 in	0.48 in
Size / Dimension [y]	12.2 mm	12.2 mm
Size / Dimension [z]	8 mm	8 mm
Size / Dimension [z]	0.31 in	0.31 in
Standard Number	62368-1	62368-1
Type	Non-Isolated PoL Module, Digital	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V	14 V
Voltage - Input (Min) [Min]	4.5 V	4.5 V
Voltage - Output 1 [Max]	5 V	1.8 - 5 V
Voltage - Output 1 [Min]	0.6 V	0.6 V

BMR461 Series

DC DC CONVERTER 0.6-5V 30W

Part	Efficiency	Number of Outputs	Type	Control Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Standard Number	Mounting Type	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Input (Min) [Min]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Package / Case	Current - Output (Max) [Max]	Applications	Approval Agency	Features
Flex Power Modules BMR4612001/001	95.6 %	1	Non-Isolated PoL Module, Digital	Active Low, Enable	0.48 in	0.48 in	8 mm	12.2 mm	12.2 mm	0.31 in	62368-1	Surface Mount	5 V	0.6 V	4.5 V	30 W	-40 °C	120 °C	14 V	32-BLGA Module	6 A	ITE (Commercial)	CB, CSA, IEC, TUV, UL	Adjustable Output, PMBus™, Remote On/Off, Remote Sense
Flex Power Modules BMR4612101/001	95.6 %	1	Non-Isolated PoL Module, Digital	Active Low, Enable	0.48 in	0.48 in	8 mm	12.2 mm	12.2 mm	0.31 in	62368-1	Surface Mount	5 V	0.6 V	4.5 V	30 W	-40 °C	120 °C	14 V	32-BLGA Module	6 A	ITE (Commercial)	CB, CSA, IEC, TUV, UL	Adjustable Output, PMBus™, Remote On/Off, Remote Sense
Flex Power Modules BMR4613101/001	95.8 %	1	Non-Isolated PoL Module, Digital	Active Low, Enable	0.48 in	0.48 in	8 mm	12.2 mm	12.2 mm	0.31 in	62368-1	Surface Mount	5 V	0.6 V	4.5 V	60 W	-40 °C	120 °C	14 V	32-BLGA Module	12 A	ITE (Commercial)	CB, CSA, IEC, TUV, UL	Adjustable Output, PMBus™, Remote On/Off, Remote Sense
Flex Power Modules BMR4614101/001	91.6 %	1	Non-Isolated PoL Module, Digital	Active Low, Enable	0.48 in	0.48 in	8 mm	12.2 mm	12.2 mm	0.31 in	62368-1	Surface Mount	1.8 V	0.6 V	4.5 V	32 W	-40 °C	120 °C	14 V	32-BLGA Module	18 A	ITE (Commercial)	CB, CSA, IEC, TUV, UL	Adjustable Output, PMBus™, Remote On/Off, Remote Sense
Flex Power Modules BMR4613001/001	95.8 %	1	Non-Isolated PoL Module, Digital	Active Low, Enable	0.48 in	0.48 in	8 mm	12.2 mm	12.2 mm	0.31 in	62368-1	Surface Mount	5 V	0.6 V	4.5 V	60 W	-40 °C	120 °C	14 V	32-BLGA Module	12 A	ITE (Commercial)	CB, CSA, IEC, TUV, UL	Adjustable Output, PMBus™, Remote On/Off, Remote Sense
Flex Power Modules BMR4614001/001	91.6 %	1	Non-Isolated PoL Module, Digital	Active Low, Enable	0.48 in	0.48 in	8 mm	12.2 mm	12.2 mm	0.31 in	62368-1	Surface Mount	1.8 V	0.6 V	4.5 V	32 W	-40 °C	120 °C	14 V	32-BLGA Module	18 A	ITE (Commercial)	CB, CSA, IEC, TUV, UL	Adjustable Output, PMBus™, Remote On/Off, Remote Sense

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 13.58
		5	$ 13.48
		10	$ 13.38
		25	$ 13.17
		50	$ 12.76
	Digi-Reel®	1	$ 13.58
		5	$ 13.48
		10	$ 13.38
		25	$ 13.17
		50	$ 12.76
	Tape & Reel (TR)	140	$ 11.52
		280	$ 11.32
		700	$ 11.11
LCSC	Piece	1	$ 10.28

Description

General part information

BMR461 Series

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 5V 12A 4.5V - 14V Input

Documents

Technical documentation and resources
