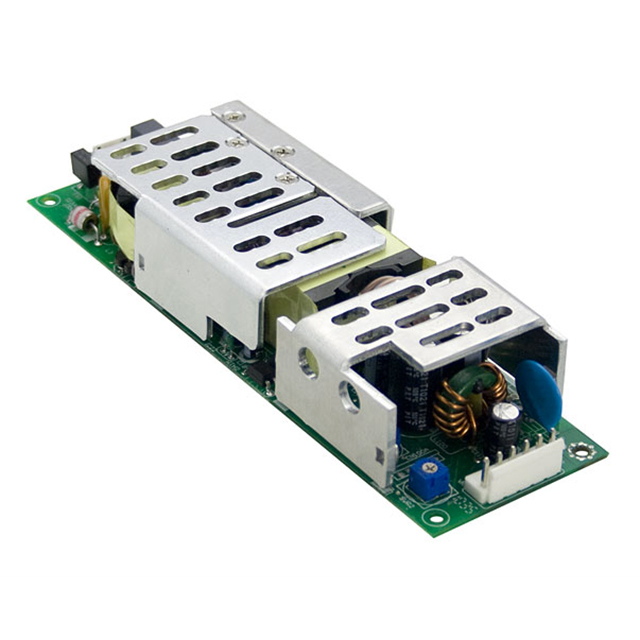

HLP-80H-20

MEAN WELL USA Inc.

LED DRIVER CC AC/DC 12-20V 4A

Search across all available documentation for this part.

MEAN WELL USA Inc.

LED DRIVER CC AC/DC 12-20V 4A

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Max) [Max]	Mounting Type	Topology	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Features	Efficiency	Type	Dimming	Power (Watts)	Voltage - Isolation	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output [Min]	Voltage - Output [Max]	Approval Agency	Termination Style	Current - Output (Max) [Max]
MEAN WELL USA Inc. HLP-80H-48	305 VAC	Chassis Mount	AC DC Converter	167 mm	53 mm	6.57 "	29.5 mm	2.09 "	1.16 "	1	OCP OTP OVP SCP	90 %	Constant Current	Analog PWM	82 W	3750 V	90 VAC	-40 °C	70 °C	28.8 V	48 V	CB CCC CE TUV UR	Rectangular 6 Position	1.7 A
MEAN WELL USA Inc. HLP-80H-54	305 VAC	Chassis Mount	AC DC Converter	167 mm	53 mm	6.57 "	29.5 mm	2.09 "	1.16 "	1	OCP OTP OVP SCP	90 %	Constant Current	Analog PWM	81 W	3750 V	90 VAC	-40 °C	70 °C	32.4 V	54 V	CB CCC CE TUV UR	Rectangular 6 Position	1.5 A
MEAN WELL USA Inc. HLP-80H-20	305 VAC	Chassis Mount	AC DC Converter	167 mm	53 mm	6.57 "	29.5 mm	2.09 "	1.16 "	1	OCP OTP OVP SCP		Constant Current	Analog PWM	80 W	3750 V	90 VAC	-40 °C	70 °C	12 V	20 V	CB CCC CE cURus TUV	Rectangular 6 Position	4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	36	$ 39.89

General part information

4A 12 ~ 20V Constant Current LED Driver AC DC Converter Topology 1 Output
