General part information

HW-UW Series

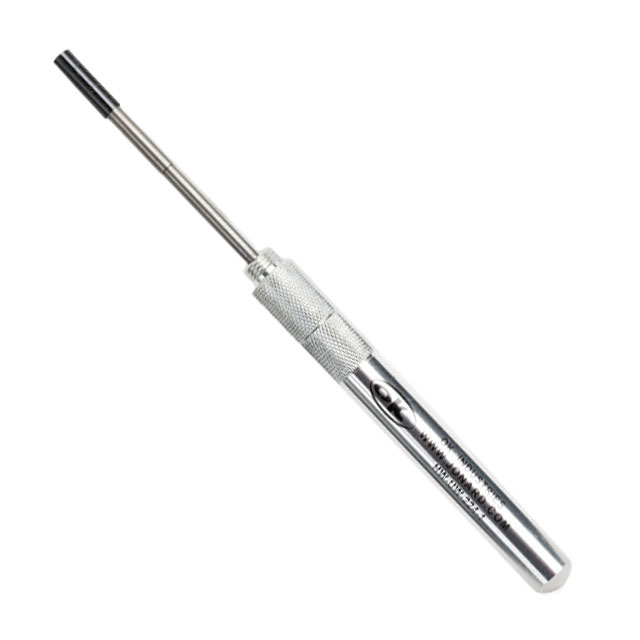

The HW-UW-224-1 is a Hand Wrapping Tool designed to produce perfect wire wrapped connections. Precision, long-lasting tools for use where occasional wraps are required or where power wire-wrapping tools are not practical.

Technical Specifications

Parameters and characteristics for this part

Specification	HW-UW-224-1

Features	Regular Wrapping, Aluminum Body
Style	Manual, Hand
Tool Type	Unwrap, Wrap
Wire Gauge	Unwrapping, Wrapping
Wire Gauge (AWG) (Max)	24 AWG, 26 AWG
Wire Gauge (AWG) (Min)	22 AWG, 20 AWG
Wire Gauge (Unwrapping) (Max)	26 AWG
Wire Gauge (Unwrapping) (Min)	20 AWG
Wire Gauge (Wrapping) (Max)	24 AWG
Wire Gauge (Wrapping) (Min)	22 AWG

HW-UW Series

Part	Wire Gauge	Wire Gauge (Unwrapping) (Max)	Wire Gauge (Unwrapping) (Min)	Wire Gauge (Wrapping) (Min)	Wire Gauge (Wrapping) (Max)	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Tool Type	Features	Style
Jonard Tools HW-UW-224-1	Unwrapping Wrapping	26 AWG	20 AWG	22 AWG	24 AWG	24 AWG 26 AWG	20 AWG 22 AWG	Unwrap Wrap	Aluminum Body Regular Wrapping	Hand Manual
Jonard Tools HW-UW-2426	20 ~ 26 AWG Unwrapping 24 ~ 26 AWG Wrapping							Unwrap Wrap	Aluminum Body Regular Wrapping	Hand Manual
Jonard Tools HW-UW-30	24 ~ 32 AWG Unwrapping 30 AWG Wrapping							Unwrap Wrap	Aluminum Body Modified Wrapping	Hand Manual
Jonard Tools HW-UW-20	20 ~ 26 AWG Unwrapping 20 AWG Wrapping							Unwrap Wrap	Aluminum Body Regular Wrapping	Hand Manual
Jonard Tools HW-UW-224INS	Unwrapping Wrapping	26 AWG	20 AWG	22 AWG	24 AWG	24 AWG 26 AWG	20 AWG 22 AWG	Unwrap Wrap	Insulated Handle Regular Wrapping	Hand Manual
Jonard Tools HW-UW-18-19						19 AWG	18 AWG	Unwrap Wrap	Aluminum Body Regular Wrapping	Hand Manual
Jonard Tools HW-UW-2829M	24 ~ 32 AWG Unwrapping 28 ~ 29 AWG Wrapping							Unwrap Wrap	Aluminum Body Modified Wrapping	Hand Manual
