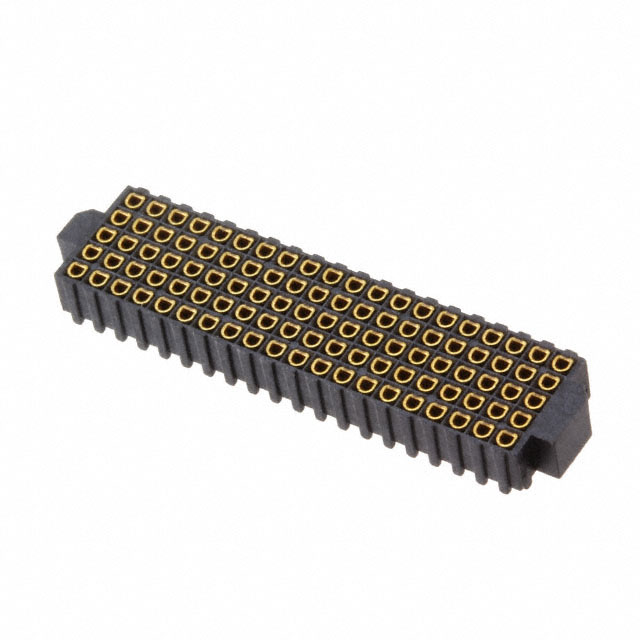

YFS-20-03-H-05-SB

Active

Samtec Inc.

MEZZANINE CONNECTOR, RECEPTACLE, 1.27 MM, 5 ROWS, 100 CONTACTS, SURFACE MOUNT, PHOSPHOR BRONZE

Search across all available documentation for this part.

Active

Samtec Inc.

MEZZANINE CONNECTOR, RECEPTACLE, 1.27 MM, 5 ROWS, 100 CONTACTS, SURFACE MOUNT, PHOSPHOR BRONZE

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Mounting Type	Features	Number of Rows	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Connector Type	Mated Stacking Heights	Number of Positions
Samtec Inc. YFS-20-03-H-10-SB-K	0.05 in	1.27 mm	Surface Mount	Pick and Place	10	Gold	0.76 Ám	30 Áin	3.4 mm	0.134 in	Array Female Sockets	5 mm 7 mm 9 mm 12 mm 19 mm 25 mm
Samtec Inc. YFS-20-03-H-05-SB-K-TR	0.05 in	1.27 mm	Surface Mount	Pick and Place	5	Gold	0.76 Ám	30 Áin	3.4 mm	0.134 in	Array Female Sockets	5 mm 7 mm 9 mm 12 mm 19 mm 25 mm	100
Samtec Inc. YFS-20-03-H-05-SB	0.05 in	1.27 mm	Surface Mount		5	Gold	0.76 Ám	30 Áin	3.4 mm	0.134 in	Array Female Sockets	5 mm 7 mm 9 mm 12 mm 19 mm 25 mm	100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 Position Connector Array, Female Sockets Surface Mount Gold
