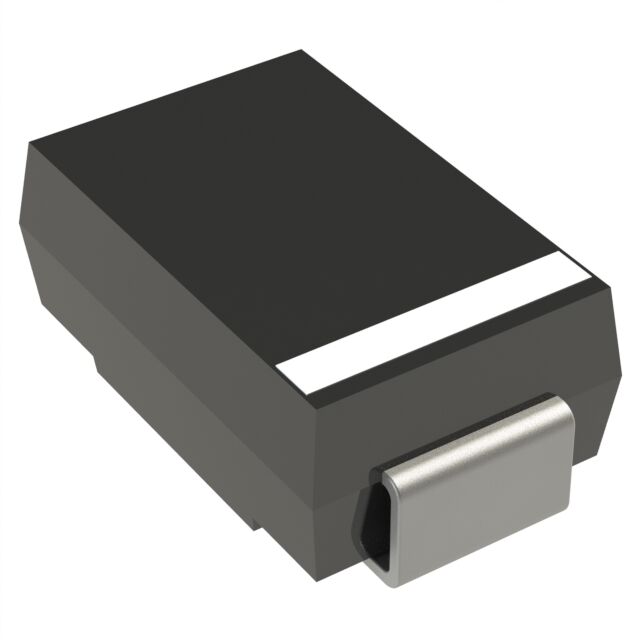

S1M
ActiveDiotec Semiconductor
DIODE STANDARD 1000V 1A DO214AC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S1M |
|---|---|
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 1 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -50 °C |
| Package / Case | DO-214AC, SMA |
| Reverse Recovery Time (trr) | 1500 ns |
| Speed | Standard Recovery >500ns |
| Speed | 200 mA |
| Supplier Device Package | DO-214AC (SMA) |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
