Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.64 | |
| 10 | $ 3.27 | |||
| 25 | $ 3.09 | |||
| 100 | $ 2.68 | |||
| 250 | $ 2.54 | |||
| 500 | $ 2.28 | |||
| 1000 | $ 1.92 | |||
| Digi-Reel® | 1 | $ 3.64 | ||
| 10 | $ 3.27 | |||
| 25 | $ 3.09 | |||
| 100 | $ 2.68 | |||
| 250 | $ 2.54 | |||
| 500 | $ 2.28 | |||
| 1000 | $ 1.92 | |||
| Tape & Reel (TR) | 2500 | $ 1.83 | ||
| 5000 | $ 1.76 | |||
Description
General part information

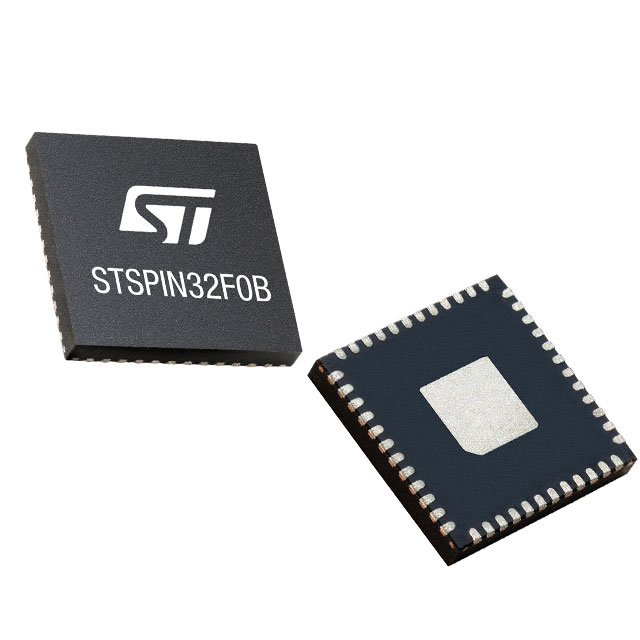

STSPIN32F0B Series
The STSPIN32F0B is a System-In-Package providing an integrated solution suitable for driving three-phase brushless motors using different driving modes.
It embeds a triple half-bridge gate driver able to drive power MOSFETs with a current capability of 600 mA (sink and source). The high- and low-side switches of same half-bridge cannot be simultaneously driven high thanks to an integrated interlocking function.
An internal DC/DC buck converter provides the 3.3 V voltage suitable to supply both the MCU and external components. An internal LDO linear regulator provides the supply voltage for gate drivers. The integrated operational amplifier is available for the signal conditioning, e.g. the current sensing across the shunt resistor.
