3120-N524-P7T1-W02D-20A

Active

E-T-A

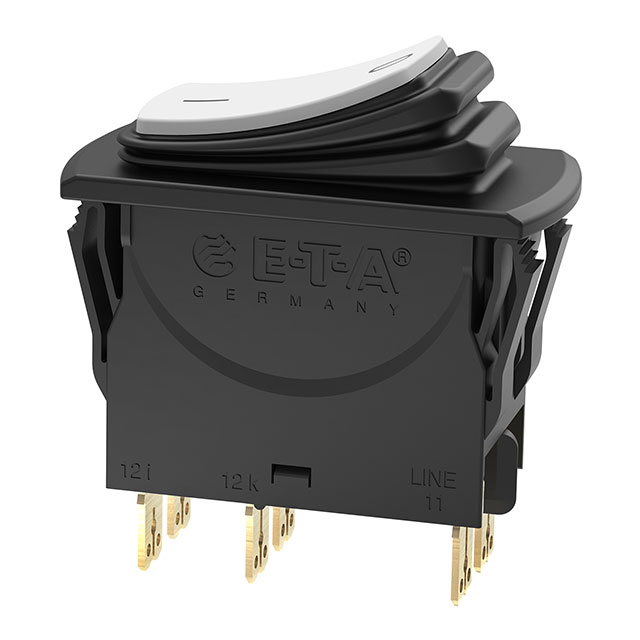

CIRCUIT BREAKERS THE 3120-N...4 IP65 RATED THERMAL CIRCUIT BREAKER/SWITCH COMBINATION UNITES OVERCURRENT PROTECTION AND THE FUNCTION OF AN ON/OFF SWITCH WITHIN A SINGLE COMPONENT. THE TRIP ELEMENT IS A THERMAL BIMETAL. TYPE 3120-N...4 IS IDEALLY SUITED F

Deep-Dive with AI

Search across all available documentation for this part.

Documents3120-N New Generation Brochure Datasheet +1

3120-N524-P7T1-W02D-20A

Active

E-T-A

Deep-Dive with AI

Documents3120-N New Generation Brochure Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3120-N524-P7T1-W02D-20A

Actuator Type	Rocker
Approval Agency	CSA C22.2 No 235, IEC 60934, GB 17701, UL1077
Breaker Type	Thermal
Current Rating (Amps)	20 A
Illumination	None
Number of Poles	2
Voltage Rating - AC	415 V
Voltage Rating - DC	50 VDC

3120-N Series

Circuit Breakers The 3120-N thermal circuit breaker/switch combination unites overcurrent protection and the function of an ON/OFF switch within a single component. The trip element is a thermal bimetal. Type 3120-N is ideally suited for overload protect

...

Part	Approval Agency	Illumination Voltage (Nominal)	Breaker Type	Illumination	Voltage Rating - DC	Actuator Type	Voltage Rating - AC	Number of Poles	Current Rating (Amps)	Mounting Type
E-T-A 3120-N31A-H7T1-W12LY3-5A	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	115 V	Thermal	White	50 VDC	Rocker	415 V	1	5 A
E-T-A 3120-N524-P7T1-W02D-20A	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077		Thermal	None	50 VDC	Rocker	415 V	2	20 A
E-T-A 3120-N311-P7T1-W15GY3-3A
E-T-A 3120-N311-P7T1-W12LY3-16A	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	115 V	Thermal	White	50 VDC	Rocker	415 V	1	16 A
E-T-A 3120-N321-P7T1-W19LG1-15A	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	12 VDC	Thermal	Green	50 VDC	Rocker	415 V	2	15 A
E-T-A 3120-N311-P7T1-W04D-4A	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077		Thermal	None	50 VDC	Rocker	415 V	1	4 A
E-T-A 3120-N321-P7T1-W19DG4-6A	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	230 V	Thermal	Green	50 VDC	Rocker	415 V	2	6 A
E-T-A 3120-N321-P7T1-W14LR4-1.5A	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	230 V	Thermal	Red	50 VDC	Rocker	415 V	2	1.5 A
E-T-A 3120-N323-P7T1-W19D-5A	CSA C22.2 No 235 EN 60934 GB 17701 IEC 60934 KC 60934 UL1077		Thermal Magnetic	None	50 VDC	Rocker	240 V	2	5 A	Panel Mount Snap-In
E-T-A 3120-N521-P7T1-W19DG3-20A	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	115 V	Thermal	Green	50 VDC	Rocker	415 V	2	20 A
