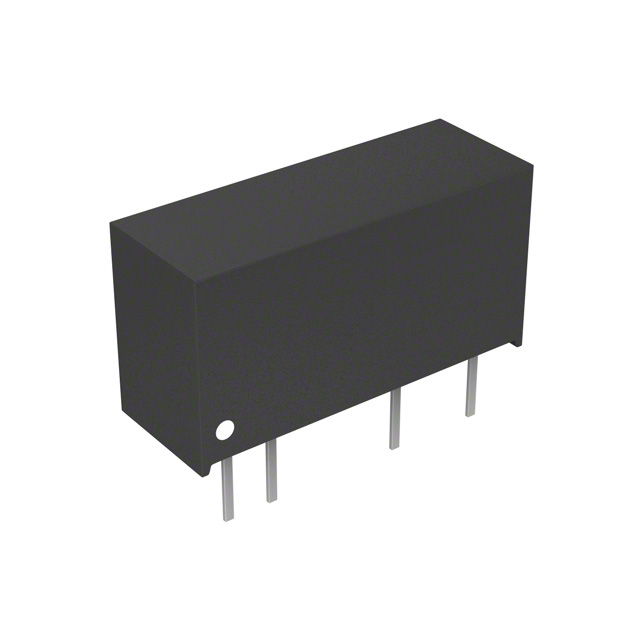

IML0205S15

Active

XP POWER

DC DC CONVERTER 15V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IML0205S15

Active

XP POWER

DC DC CONVERTER 15V 2W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IML0205S15

Applications	Medical
Current - Output (Max) [Max]	133 mA
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 4 Leads
Power (Watts)	2 W
Size / Dimension [x]	0.77 in
Size / Dimension [x]	19.5 mm
Size / Dimension [y]	0.39 "
Size / Dimension [y]	9.8 mm
Size / Dimension [z]	0.47 "
Size / Dimension [z]	12 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

IML0205 Series

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Package / Case	Features	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Voltage - Isolation	Voltage - Input (Max) [Max]	Efficiency	Current - Output (Max) [Max]	Number of Outputs	Voltage - Output 1	Power (Watts)	Mounting Type	Applications	Voltage - Output 2	Current - Output (Max) [Min]	Current - Output (Max)
XP POWER IML0205S12	0.47 "	0.77 in	0.39 "	9.8 mm	12 mm	19.5 mm	7-SIP Module 4 Leads	SCP	Isolated Module	85 °C	-40 °C	4.5 V	4000 V	5.5 V	83 %	167 mA	1	12 V	2 W	Through Hole	Medical
XP POWER IML0205D05	0.47 "	0.77 in	0.39 "	9.8 mm	12 mm	19.5 mm	7-SIP Module 5 Leads	SCP	Isolated Module	85 °C	-40 °C	4.5 V	4000 V	5.5 V	78 %		2	5 V	2 W	Through Hole	Medical	-5 V
XP POWER IML0205D09	0.47 "	0.77 in	0.39 "	9.8 mm	12 mm	19.5 mm	7-SIP Module 5 Leads	SCP	Isolated Module	85 °C	-40 °C	4.5 V	4000 V	5.5 V	80 %	111 mA	2	9 V	2 W	Through Hole	Medical	-9 V	111 mA
XP POWER IML0205D03	0.47 "	0.77 in	0.39 "	9.8 mm	12 mm	19.5 mm	7-SIP Module 5 Leads	SCP	Isolated Module	85 °C	-40 °C	4.5 V	4000 V	5.5 V	77 %		2	3.3 V	2 W	Through Hole	Medical	-3.3 V		300 mA
XP POWER IML0205S15	0.47 "	0.77 in	0.39 "	9.8 mm	12 mm	19.5 mm	7-SIP Module 4 Leads	SCP	Isolated Module	85 °C	-40 °C	4.5 V	4000 V	5.5 V		133 mA	1	15 V	2 W	Through Hole	Medical
XP POWER IML0205D15	0.47 "	0.77 in	0.39 "	9.8 mm	12 mm	19.5 mm	7-SIP Module 5 Leads	SCP	Isolated Module	85 °C	-40 °C	4.5 V	4000 V	5.5 V			2	15 V	2 W	Through Hole	Medical	-15 V		66 mA
XP POWER IML0205S3V3	0.47 "	0.77 in	0.39 "	9.8 mm	12 mm	19.5 mm	7-SIP Module 4 Leads	SCP	Isolated Module	85 °C	-40 °C	4.5 V	4000 V	5.5 V	75 %	600 mA	1	3.3 V	2 W	Through Hole	Medical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.10
		5	$ 7.86
		10	$ 7.61
		25	$ 7.29
		100	$ 6.80

Description

General part information

IML0205 Series

Isolated Module DC DC Converter 1 Output 15V 133mA 4.5V - 5.5V Input
