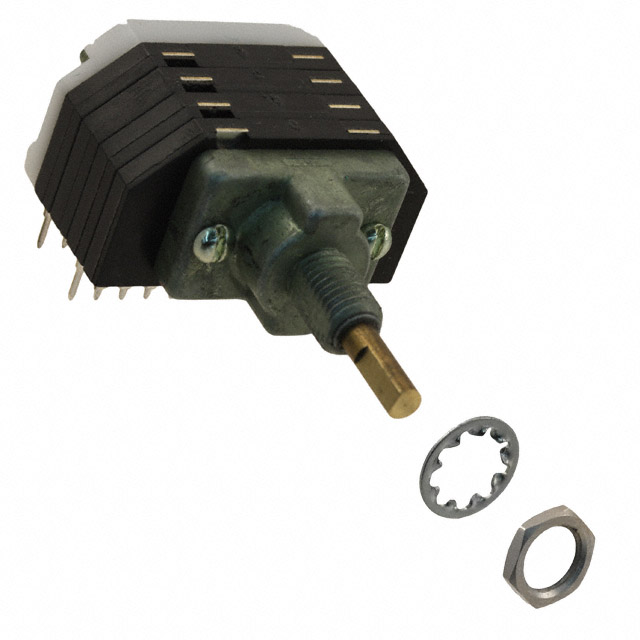

C3P0212N-A

Active

ELECTROSWITCH

SWITCH ROTARY 2-12POS 100MA 125V

Search across all available documentation for this part.

Active

ELECTROSWITCH

SWITCH ROTARY 2-12POS 100MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	C3P0212N-A

Actuator Length [x]	9.52 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Angle of Throw	30 °
Circuit per Deck	SP12T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	100 mA, 250 mA
Depth Behind Panel	30 mm
Index Stops	Adjustable
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Decks	2
Number of Poles per Deck	1
Number of Positions [Max]	12
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	6.76 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Number of Poles per Deck	Mounting Type	Circuit per Deck	Actuator Type [diameter]	Actuator Type	Voltage Rating - DC	Current Rating (Amps)	Voltage Rating - AC	Depth Behind Panel	Index Stops	Number of Positions [Max]	Number of Positions [Min]	Contact Finish	Termination Style	Contact Material	Number of Decks	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Contact Timing	Angle of Throw
ELECTROSWITCH C3P0212N-A	1	Panel Mount Right Angle Through Hole	SP12T	3.17 mm	Flatted	28 V	100 mA 250 mA	125 V	30 mm	Adjustable	12	2	Silver	PC Pin	Brass	2	6.76 mm	9.52 mm	Non-Shorting	30 °
ELECTROSWITCH C3P0212N-4115	1	Panel Mount Right Angle Through Hole	SP12T	3.17 mm	Round	28 V	100 mA 250 mA	125 V		Adjustable	12	2	Silver	PC Pin	Brass	2	6.76 mm	17.5 mm	Non-Shorting	30 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 2 ~ 12 Position SP12T 100mA (AC), 250mA (DC) 125 VAC Panel Mount, Through Hole, Right Angle
