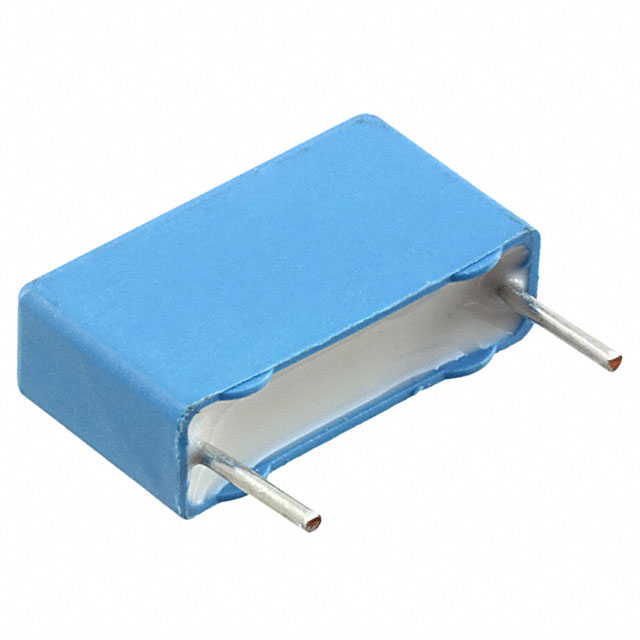

PHE448SB3220JR06

Active

KEMET

FILM CAPACITOR, PHE448 SERIES, 220 PF, 5%, PP (POLYPROPYLENE), 2 KV ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

FILM CAPACITOR, PHE448 SERIES, 220 PF, 5%, PP (POLYPROPYLENE), 2 KV ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Voltage Rating - AC	Capacitance	Dielectric Material	Voltage Rating - DC	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Package / Case	Mounting Type	Applications
KEMET PHE448SB4150JR06	0.709 in	0.256 in	6.5 mm	18 mm	PC Pins	0.492 in	12.5 mm	15 mm	0.591 in	700 V	1500 pF	Polypropylene (PP)	2 kV	2 kVDC	105 ░C	-55 °C	5 %	Radial	Through Hole	General Purpose
KEMET PHE448RB4470JR06	0.709 in	0.256 in	6.5 mm	18 mm	PC Pins	0.492 in	12.5 mm	15 mm	0.591 in	650 V	4700 pF	Polypropylene (PP)	1.6 kV	1600 V	105 ░C	-55 °C	5 %	Radial	Through Hole	DV/DT High Frequency High Pulse Switching
KEMET PHE448SB3270JR06	0.709 in	0.217 in	5.5 mm	18 mm	PC Pins	0.413 in	10.5 mm	15 mm	0.591 in	700 V	270 pF	Polypropylene (PP)	2 kV	2 kVDC	105 ░C	-55 °C	5 %	Radial	Through Hole	DV/DT High Frequency High Pulse Switching
KEMET PHE448SB3220JR06	0.709 in	0.217 in	5.5 mm	18 mm	PC Pins	0.413 in	10.5 mm	15 mm	0.591 in	700 V	220 pF	Polypropylene (PP)	2 kV	2 kVDC	105 ░C	-55 °C	5 %	Radial	Through Hole	General Purpose
KEMET PHE448SB4220JR06	0.709 in	0.335 in	8.5 mm	18 mm	PC Pins	0.63 in	16 mm	15 mm	0.591 in	700 V	2200 pF	Polypropylene (PP)	2 kV	2 kVDC	105 ░C	-55 °C	5 %	Radial	Through Hole	DV/DT High Frequency High Pulse Switching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

220 pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP) Radial
