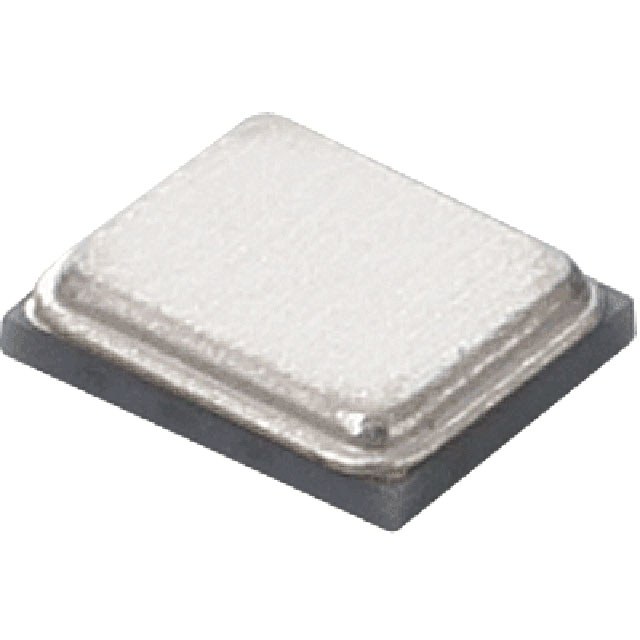

Specification	XRCED38M400FXQ50R0

ESR (Equivalent Series Resistance)	80 Ohm
Frequency	38.4 MHz
Frequency Stability	20 ppm
Frequency Tolerance	20 ppm
Height - Seated (Max)	0.013 in
Load Capacitance	10 pF
Mounting Type	Surface Mount
Operating Mode	Fundamental
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Package / Case	4-SMD, No Lead
Package Length	1.2 mm
Package Name	4-SMD
Package Width	1 mm
Size / Dimension Length	0.047 in
Size / Dimension Width	0.039 in
Type	MHz Crystal

XRCED Series

Part	Package Width	Package Name	Package Length	Frequency	Frequency Stability	Type	ESR (Equivalent Series Resistance)	Package / Case	Height - Seated (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length	Size / Dimension Width	Load Capacitance	Frequency Tolerance	Mounting Type	Operating Mode
Murata Electronics XRCED38M400FXQ50R0	1 mm	4-SMD	1.2 mm	38.4 MHz	20 ppm	MHz Crystal	80 Ohm	4-SMD No Lead	0.013 in	85 °C	-30 °C	0.047 in	0.039 in	10 pF	20 ppm	Surface Mount	Fundamental
