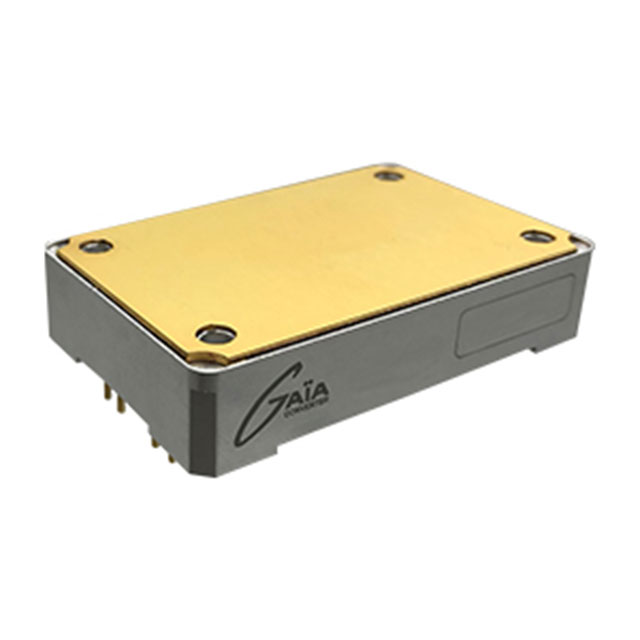

MGDSI-254-H-E

Active

Gaia Converter

DC DC CONVERTER 12V 250W

Search across all available documentation for this part.

Active

Gaia Converter

DC DC CONVERTER 12V 250W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 12V 250W

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Voltage - Isolation	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Output 1	Type	Features	Supplier Device Package	Efficiency	Power (Watts)	Applications	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]
Gaia Converter MGDSI-254-H-E	12.9 mm	1.54 "	61 mm	0.51 in	2.4 in	39 mm	20.8 A	1.5 kV	1	36 V	12 V	Isolated Module	Baseplate	Quarter Brick	91 %	250 W	ITE (Commercial)	Through Hole	Quarter Brick	100 °C	-40 °C	9 V
Gaia Converter MGDSI-254-H-F	12.9 mm	1.54 "	61 mm	0.51 in	2.4 in	39 mm	16.7 A	1.5 kV	1	36 V	15 V	Isolated Module	Baseplate	Quarter Brick	91 %	251 W	ITE (Commercial)	Through Hole	Quarter Brick	100 °C	-40 °C	9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4	$ 393.14

General part information

Isolated Module DC DC Converter 1 Output 12V 20.8A 9V - 36V Input
