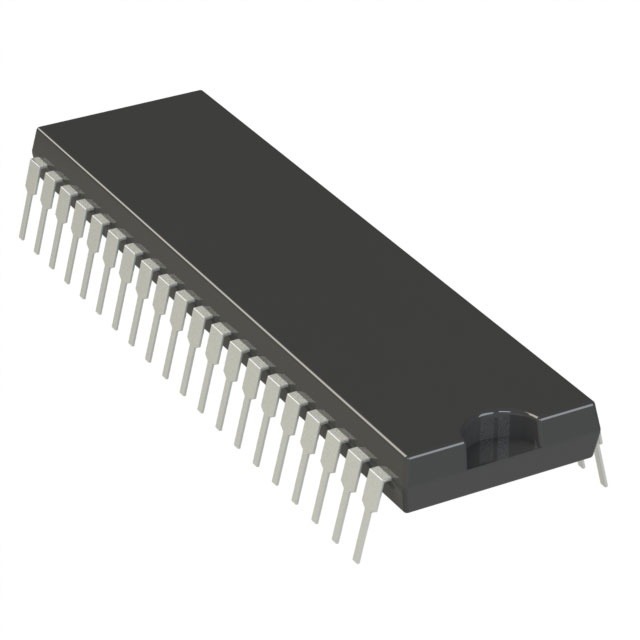

PIC16LC74B-04I/P
Active8-BIT, OTPROM, 4 MHZ, RISC MICROCONTROLLER, PDIP40, 0.600 INCH, PLASTIC, MO-011, DIP-40
Deep-Dive with AI
Search across all available documentation for this part.
PIC16LC74B-04I/P
Active8-BIT, OTPROM, 4 MHZ, RISC MICROCONTROLLER, PDIP40, 0.600 INCH, PLASTIC, MO-011, DIP-40
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PIC16LC74B-04I/P | PIC16C74B Series |
|---|---|---|
| Connectivity [custom] | I2C, SPI, UART/USART | I2C, SPI, UART/USART |
| Core Processor | PIC | PIC |
| Core Size | 8-Bit | 8-Bit |
| Data Converters | - | 8 b |
| Data Converters | - | 8 |
| Data Converters | - | A/D |
| Mounting Type | Through Hole | Through Hole, Surface Mount |
| Number of I/O | 33 | 33 |
| Operating Temperature [Max] | 85 °C | 70 - 85 °C |
| Operating Temperature [Min] | -40 °C | -40 - 0 °C |
| Oscillator Type | External | External |
| Package / Case | 0.6 in, 600 mil | 0.6 - 600 in |
| Package / Case | 40-DIP | 40-DIP, 44-LCC (J-Lead), 44-QFP |
| Program Memory Size | 7 KB | 7 KB |
| Program Memory Type | OTP | OTP |
| RAM Size | 192 x 8 | 192 x 8 |
| Speed | 4 MHz | 4 - 20 MHz |
| Supplier Device Package | 40-PDIP | 40-PDIP, 44-PLCC (16.59x16.59) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.5 V | 2.5 - 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Avnet Americas | N/A | 80 | $ 8.14 | |
| 100 | $ 8.08 | |||
| 180 | $ 8.01 | |||
| 400 | $ 7.94 | |||
| 800 | $ 7.88 | |||
| DigiKey | N/A | 90 | $ 7.89 | |
| Digikey | Tube | 90 | $ 8.00 | |
| Future Electronics | N/A | 80 | $ 8.34 | |
| Master Electronics | N/A | 23 | $ 10.98 | |
| 45 | $ 8.41 | |||
| 68 | $ 7.80 | |||
| 90 | $ 7.64 | |||
| Microchip Direct | TUBE | 1 | $ 8.23 | |
| 25 | $ 8.00 | |||
| 100 | $ 7.78 | |||
| 1000 | $ 7.35 | |||
| 5000 | $ 7.08 | |||
| Microchip Technology Inc | N/A | 1 | $ 8.23 | |
| 25 | $ 8.00 | |||
| 100 | $ 7.78 | |||
| 1000 | $ 7.35 | |||
| 5000 | $ 7.08 | |||
| Onlinecomponents.com | N/A | 23 | $ 10.98 | |
| 45 | $ 8.41 | |||
| 68 | $ 7.80 | |||
| 90 | $ 7.64 | |||
PIC16C74B Series
8-BIT, OTPROM, 4 MHZ, RISC MICROCONTROLLER, PDIP40, 0.600 INCH, PLASTIC, MO-011, DIP-40
| Part | Program Memory Type | Data Converters [custom] | Data Converters [custom] | Data Converters | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Core Processor | Mounting Type | Speed | Oscillator Type | Operating Temperature [Max] | Operating Temperature [Min] | Core Size | Supplier Device Package | Package / Case | Package / Case | Program Memory Size | Connectivity [custom] | RAM Size | Number of I/O |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology PIC16C74B-04I/P | OTP | 8 b | 8 | A/D | 5.5 V | 4 V | PIC | Through Hole | 4 MHz | External | 85 °C | -40 °C | 8-Bit | 40-PDIP | 0.6 in, 600 mil | 40-DIP | 7 KB | I2C, SPI, UART/USART | 192 x 8 | 33 |
Microchip Technology PIC16C74B-04/L | OTP | 8 b | 8 | A/D | 5.5 V | 4 V | PIC | Surface Mount | 4 MHz | External | 70 °C | 0 °C | 8-Bit | 44-PLCC (16.59x16.59) | 44-LCC (J-Lead) | 7 KB | I2C, SPI, UART/USART | 192 x 8 | 33 | |
Microchip Technology PIC16C74B-20/PQ | OTP | 8 b | 8 | A/D | 5.5 V | 4 V | PIC | Surface Mount | 20 MHz | External | 70 °C | 0 °C | 8-Bit | 44-QFP | 7 KB | I2C, SPI, UART/USART | 192 x 8 | 33 | ||
Microchip Technology PIC16LC74B-04I/P | OTP | 5.5 V | 2.5 V | PIC | Through Hole | 4 MHz | External | 85 °C | -40 °C | 8-Bit | 40-PDIP | 0.6 in, 600 mil | 40-DIP | 7 KB | I2C, SPI, UART/USART | 192 x 8 | 33 | |||
Microchip Technology PIC16LC74B-04/L | OTP | 5.5 V | 2.5 V | PIC | Surface Mount | 4 MHz | External | 70 °C | 0 °C | 8-Bit | 44-PLCC (16.59x16.59) | 44-LCC (J-Lead) | 7 KB | I2C, SPI, UART/USART | 192 x 8 | 33 | ||||
Microchip Technology PIC16LC74B-04I/PQ | OTP | 5.5 V | 2.5 V | PIC | Surface Mount | 4 MHz | External | 85 °C | -40 °C | 8-Bit | 44-QFP | 7 KB | I2C, SPI, UART/USART | 192 x 8 | 33 | |||||
Microchip Technology PIC16C74B-04/PQ | OTP | 8 b | 8 | A/D | 5.5 V | 4 V | PIC | Surface Mount | 4 MHz | External | 70 °C | 0 °C | 8-Bit | 44-QFP | 7 KB | I2C, SPI, UART/USART | 192 x 8 | 33 | ||
Microchip Technology PIC16LC74B-04I/L | OTP | 5.5 V | 2.5 V | PIC | Surface Mount | 4 MHz | External | 85 °C | -40 °C | 8-Bit | 44-PLCC (16.59x16.59) | 44-LCC (J-Lead) | 7 KB | I2C, SPI, UART/USART | 192 x 8 | 33 | ||||
Microchip Technology PIC16C74B-20I/PQ | OTP | 8 b | 8 | A/D | 5.5 V | 4 V | PIC | Surface Mount | 20 MHz | External | 85 °C | -40 °C | 8-Bit | 44-QFP | 7 KB | I2C, SPI, UART/USART | 192 x 8 | 33 | ||
Microchip Technology PIC16C74B-20/L | OTP | 8 b | 8 | A/D | 5.5 V | 4 V | PIC | Surface Mount | 20 MHz | External | 70 °C | 0 °C | 8-Bit | 44-PLCC (16.59x16.59) | 44-LCC (J-Lead) | 7 KB | I2C, SPI, UART/USART | 192 x 8 | 33 | |
Microchip Technology PIC16C74B-04I/L | OTP | 8 b | 8 | A/D | 5.5 V | 4 V | PIC | Surface Mount | 4 MHz | External | 85 °C | -40 °C | 8-Bit | 44-PLCC (16.59x16.59) | 44-LCC (J-Lead) | 7 KB | I2C, SPI, UART/USART | 192 x 8 | 33 | |
Microchip Technology PIC16C74B-20/P | OTP | 8 b | 8 | A/D | 5.5 V | 4 V | PIC | Through Hole | 20 MHz | External | 70 °C | 0 °C | 8-Bit | 40-PDIP | 0.6 in, 600 mil | 40-DIP | 7 KB | I2C, SPI, UART/USART | 192 x 8 | 33 |
Microchip Technology PIC16C74B-20I/P | OTP | 8 b | 8 | A/D | 5.5 V | 4 V | PIC | Through Hole | 20 MHz | External | 85 °C | -40 °C | 8-Bit | 40-PDIP | 0.6 in, 600 mil | 40-DIP | 7 KB | I2C, SPI, UART/USART | 192 x 8 | 33 |
Description
General part information
PIC16C74B Series
This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS OTP-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into an 40- or 44-pin package and is upwards compatible with the PIC16C5X and PIC12CXXX devices. The PIC16C74B features 8 channels of 8-bit Analog-to-Digital (A/D) converter with 2 additional timers, 2 capture/compare/PWM functions and the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and a Universal Asynchronous Receiver Transmitter (USART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.
