C5P0304N-A
ActiveROTARY SWITCH, 4 POSITION, 3 POLE, 30 °, 1 A, 125 V, C5 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
C5P0304N-A
ActiveROTARY SWITCH, 4 POSITION, 3 POLE, 30 °, 1 A, 125 V, C5 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C5P0304N-A |
|---|---|
| Actuator Length [x] | 14.29 mm |
| Actuator Type | Flatted |
| Actuator Type [diameter] | 6.35 mm |
| Angle of Throw | 30 ° |
| Circuit per Deck | 3P4T |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Timing | Non-Shorting |
| Depth Behind Panel [z] | 20.07 mm |
| Features | Sealed |
| Index Stops | Adjustable |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 3 |
| Number of Positions [Max] | 4 |
| Number of Positions [Min] | 2 |
| Panel Cutout Dimensions [diameter] | 9.78 mm |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
C5P0304 Series

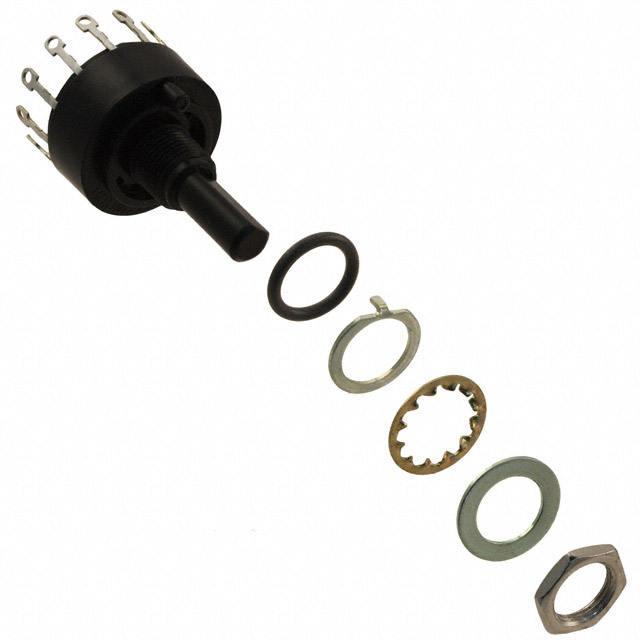

The C5P0304N-A is a three-pole four-throw (3P4T) Rotary Switch with polyester insulation, brass with silver plate as standard terminals and contacts. The C5 series offers a very economical and lightweight design. Standard features include 30° indexing up to 4-position, solder lug terminals, fixed stops and both internal and external seals for washability.
