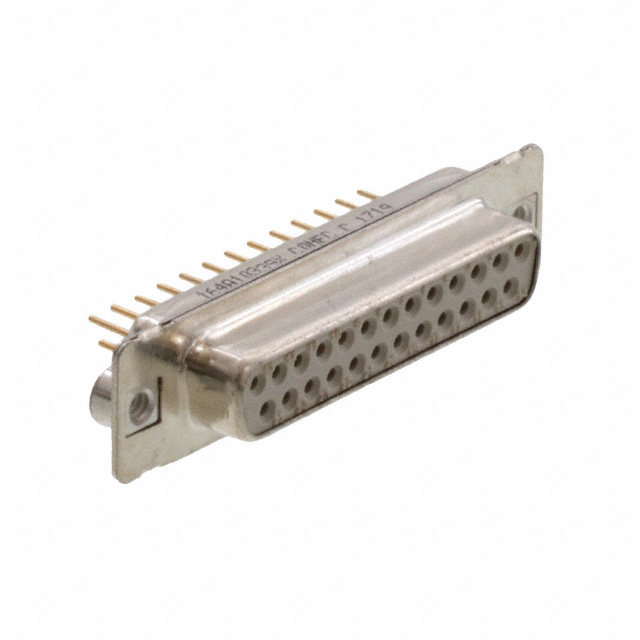

164A10339X

Active

Amphenol CONEC

CONN D-SUB RCPT 25POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

164A10339X

Active

Amphenol CONEC

CONN D-SUB RCPT 25POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	164A10339X

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	125 VDC

164A103 Series

Part	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Flange Feature	Contact Finish	Contact Finish Thickness	Material Flammability Rating	Dielectric Material	Contact Material	Voltage Rating	Contact Type	Number of Rows	Mounting Type	Termination	Connector Style	Color	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge
Amphenol CONEC 164A10339X	B DB	3	Receptacle Female Sockets	4-40 Board Side	Gold	Flash	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	125 VDC	Signal	2	Through Hole	Solder	D-Sub	Black	7.5 A	-55 °C	125 °C
Amphenol CONEC 164A10329X			Receptacle Female Sockets	4-40 Board Side	Gold	Flash	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	125 VDC	Signal	2	Through Hole	Solder	D-Sub	Black	7.5 A	-55 °C	125 °C	15	2
Amphenol CONEC 164A10389X	B DB	3	Receptacle Female Sockets	Housing/Shell (M3)	Gold		UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	125 VDC	Signal	2	Through Hole	Solder	D-Sub	Black	7.5 A	-55 °C	125 °C
Amphenol CONEC 164A10359X			Receptacle Female Sockets	4-40 Board Side	Gold		UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	125 VDC	Signal	3	Through Hole	Solder	D-Sub	Black	7.5 A	-55 °C	125 °C	50	5	8 çin	0.203 çm
Amphenol CONEC 164A10309X			Receptacle Female Sockets	Cable Side (M3)	Gold		UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	125 VDC	Signal	3	Free Hanging (In-Line)		D-Sub	Black	7.5 A	-55 °C	125 °C	50	5	8 çin	0.203 çm	20 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 9.50

Description

General part information

164A103 Series

25 Position D-Sub Receptacle, Female Sockets Connector
