90101/50 100

Active

3M (TC)

CBL RIBN 50COND 0.025 GRAY 100'

Search across all available documentation for this part.

Active

3M (TC)

CBL RIBN 50COND 0.025 GRAY 100'

Technical Specifications

Parameters and characteristics for this part

Part	Jacket (Insulation) Material	Wire Gauge	Cable Type	Conductor Material	First Conductor Mark	Insulation Resistance	Ribbon Thickness	Ribbon Thickness	Shielding	Pitch [x]	Pitch [x]	Ratings	Number of Conductors	Conductor Strand	Ribbon Width	Ribbon Width	Length [x]	Length [x]	Voltage	Jacket Color	Ribbon Width
3M (TC) 90101/50 100	Poly-Vinyl Chloride (PVC)	30 AWG	Flat Cable Flat Jacket	Copper Tinned	Blue	10 GOhm	0.1 in	2.54 mm	Shielded	0.64 mm	0.025 in	UL E118773	50	Solid	1.35 in	34.29 mm	100 ft	30.48 m	150 V	Gray
3M (TC) 90101/100 100	Poly-Vinyl Chloride (PVC)	30 AWG	Flat Cable Flat Jacket	Copper Tinned	Blue	10 GOhm	0.1 in	2.54 mm	Shielded	0.64 mm	0.025 in	UL E118773	100	Solid	2.6 "	66.04 mm	100 ft	30.48 m	150 V	Gray
3M (TC) 90101/30
3M (TC) 90101/40 100	Poly-Vinyl Chloride (PVC)	30 AWG	Flat Cable Flat Jacket	Copper Tinned	Blue	10 GOhm	0.1 in	2.54 mm	Shielded	0.64 mm	0.025 in	UL E118773	40	Solid	1.1 in	27.94 mm	100 ft	30.48 m	150 V	Gray
3M (TC) 90101/36 100	Poly-Vinyl Chloride (PVC)	30 AWG	Flat Cable Flat Jacket	Copper Tinned	Blue	10 GOhm	0.1 in	2.54 mm	Shielded	0.64 mm	0.025 in	UL E118773	36	Solid		1 in	100 ft	30.48 m	150 V	Gray	25.4 mm
3M (TC) 90101/20 100	Poly-Vinyl Chloride (PVC)	30 AWG	Flat Cable Flat Jacket	Copper Tinned	Blue	10 GOhm	0.1 in	2.54 mm	Shielded	0.64 mm	0.025 in	UL E118773	20	Solid	0.6 in	15.24 mm	100 ft	30.48 m	150 V	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

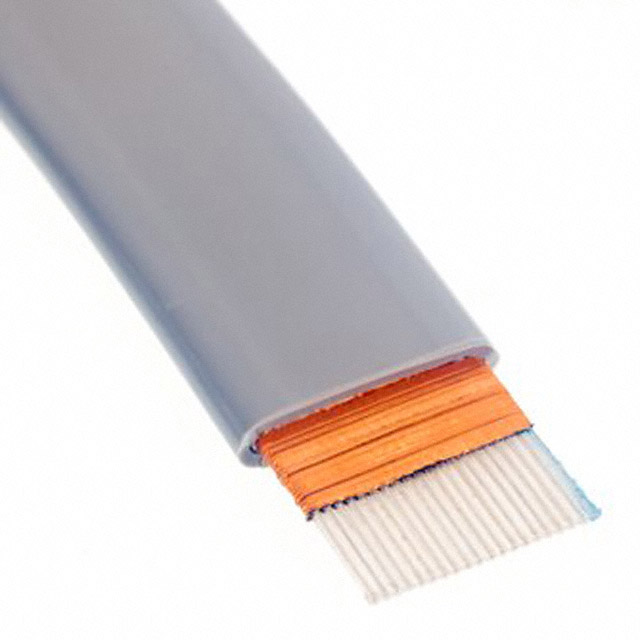

Flat Ribbon Cable Gray 50 Conductors 0.025" (0.64mm) Flat Cable, Flat Jacket 100.0' (30.48m)
