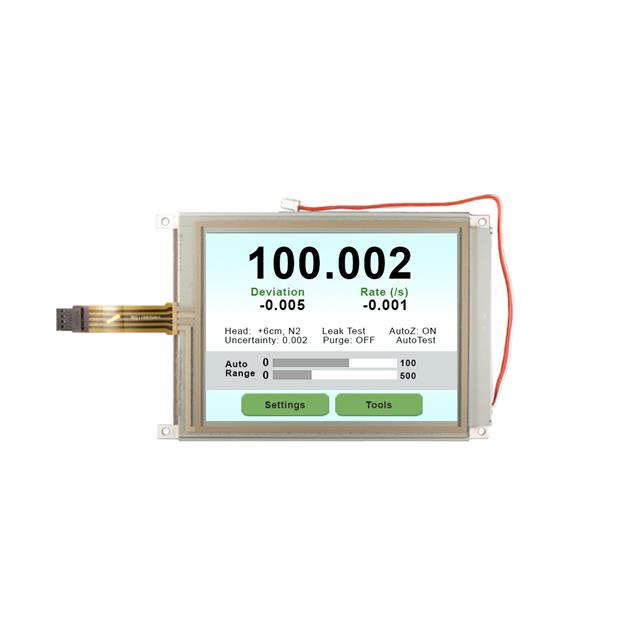

Specification	NHD-5.7-320240WFB-CTXI#-T-1

Backlight Color	White
Backlight Type	LED
Controller Type	SSD1963
Diagonal Screen Size	5.7 in
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pixels (Horizontal)	320 pixels
Dot Pixels (Resolution)	QVGA
Dot Pixels (Vertical)	240 pixels
Graphics Color	Red, Green, Blue
Interface	SSD1963
Interface Data Width	8 Bit
Touchscreen	Resistive
Viewing Area Height	88.6 mm
Viewing Area Width	118.28 mm

NHD-5.7 Series

Part	Controller Type	Graphics Color	Viewing Area Width	Viewing Area Height	Diagonal Screen Size	Dot Pixels (Vertical)	Dot Pixels (Resolution)	Dot Pixels (Horizontal)	Backlight Type	Backlight Color	Display Mode	Display Type	Interface	Interface Data Width	For Use With/Related Products	Accessory Type	Touchscreen	Dot Size Width	Dot Size Height
Newhaven Display Intl NHD-5.7-320240WFB-ETXI#-1	SSD1963	Blue Green Red	118.28 mm	88.6 mm	5.7 in	240 pixels	QVGA	320 pixels	LED	White	Transmissive	TFT - Color	SSD1963	16 Bit
Newhaven Display Intl NHD-5.7F-LED DRIVER															NHD-5.7-640480WF Display Series	LED - Driver
Newhaven Display Intl NHD-5.7-320240WFB-CTXI#-1	SSD1963	Blue Green Red	118.28 mm	88.6 mm	5.7 in	240 pixels	QVGA	320 pixels	LED	White	Transmissive	TFT - Color	SSD1963	8 Bit
Newhaven Display Intl NHD-5.7-320240WFB-CTXI#-T-1	SSD1963	Blue Green Red	118.28 mm	88.6 mm	5.7 in	240 pixels	QVGA	320 pixels	LED	White	Transmissive	TFT - Color	SSD1963	8 Bit			Resistive
Newhaven Display Intl NHD-5.7-320240WFB-ATXI#-1		Blue Green Red	118.28 mm	88.6 mm	5.7 in	240 pixels	QVGA	320 pixels	LED	White	Transmissive	TFT - Color	Parallel	24 Bit				0.36 mm	0.36 mm
Newhaven Display Intl NHD-5.7-640480WF-CTXL#	SSD1963	Blue Green Red	117.5 mm	88.7 mm	5.7 in	480 pixels	VGA	640 pixels	LED	White	Transmissive	TFT - Color	SSD1963	8 Bit				0.18 mm	0.18 mm
Newhaven Display Intl NHD-5.7B-LED DRIVER															NHD-5.7-320240WFB Display Series	LED - Driver
Newhaven Display Intl NHD-5.7-320240WFB-ETXI#-T-1	SSD1963	Blue Green Red	118.28 mm	88.6 mm	5.7 in	240 pixels	QVGA	320 pixels	LED	White	Transmissive	TFT - Color	SSD1963	16 Bit			Resistive
Newhaven Display Intl NHD-5.7-640480WF-CTXL #-T		Blue Green Red	118.2 mm	88.7 mm	5.7 in	480 pixels	VGA	640 pixels	LED	White	Transmissive	TFT - Color	SSD1963	8 Bit			Resistive	0.18 mm	0.18 mm
