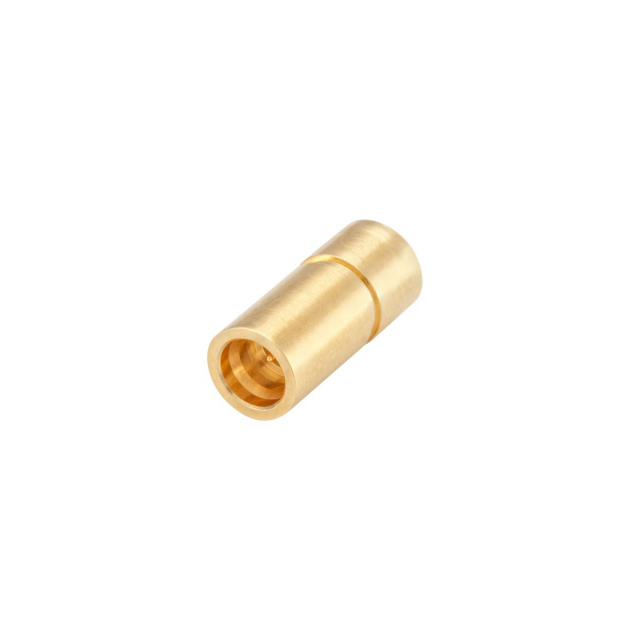

19S15R-001E4

Active

Rosenberger

SMP TERMINATOR

Search across all available documentation for this part.

Active

Rosenberger

SMP TERMINATOR

Technical Specifications

Parameters and characteristics for this part

Specification	19S15R-001E4

Body Finish	Gold
Body Material	Brass
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Brass
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Connector Type	Dielectric Material	Contact Material	Contact Finish	Impedance	Mounting Type	Frequency - Max [Max]	Body Material	Body Finish
Rosenberger 19S15R-001E4	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Brass	Gold	50 Ohms	Cap Free Hanging	18 GHz	Brass	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 66.85

General part information

Terminator Coax Connector Plug, Male Pin SMP 50 Ohms
