Technical Specifications
Parameters and characteristics for this part

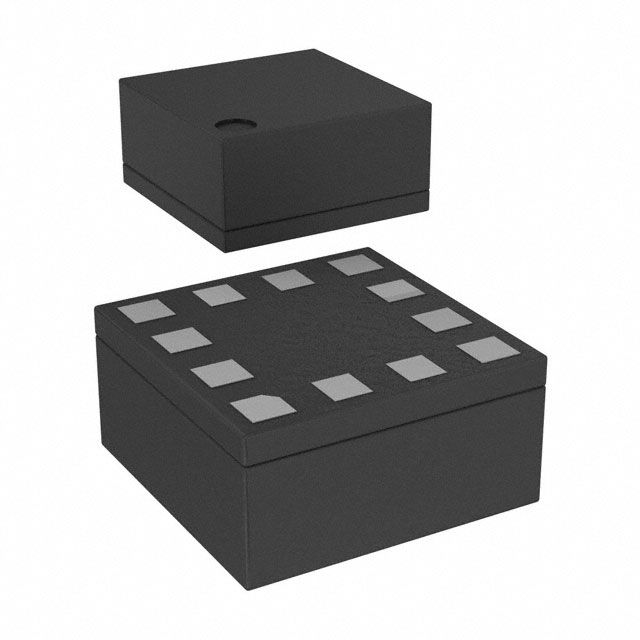

| Specification | ISM303DACTR |
|---|---|
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | I2C, SPI |
| Sensor Type | Magnetometer, Accelerometer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.33 | |
| 10 | $ 5.50 | |||
| 25 | $ 4.89 | |||
| 50 | $ 4.64 | |||
| 100 | $ 4.52 | |||
| 500 | $ 3.79 | |||
| 1000 | $ 3.54 | |||
| Digi-Reel® | 1 | $ 7.33 | ||
| 10 | $ 5.50 | |||
| 25 | $ 4.89 | |||
| 50 | $ 4.64 | |||
| 100 | $ 4.52 | |||
| 500 | $ 3.79 | |||
| 1000 | $ 3.54 | |||
| Tape & Reel (TR) | 8000 | $ 3.02 | ||
Description
General part information
ISM303DAC Series
The ISM303DAC is a high-performance, low-power system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor.
The ISM303DAC has user-selectable linear acceleration full scales of ±2g/±4g/±8g/±16 g and is capable of measuring accelerations with output data rates from 1 Hz to 6400 Hz. The device has a magnetic field dynamic range of up to ±50 gauss with output data rates from10 Hz to 150 Hz. The ISM303DAC includes an I2C serial bus interface that supports standard, fast mode, fast mode plus, and high-speed (100 kHz, 400 kHz, 1 MHz, and 3.4 MHz) and an SPI serial standard interface.
The ISM303DAC has an integrated 256-level first-in, first-out (FIFO) buffer for the accelerometer data which can be used to limit the intervention of the host processor.
