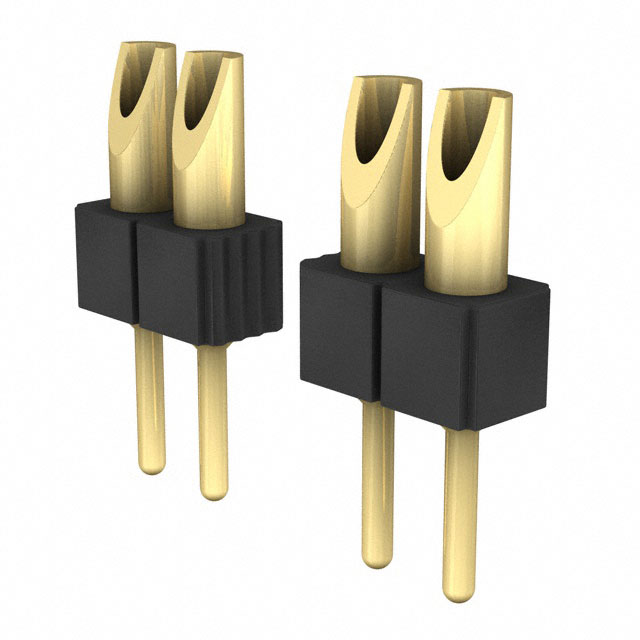

Specification	800-10-007-10-007000

Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Type	Solder Cup
Mounting Type	Through Hole
Number of Positions	7
Number of Rows	1
Pitch	0.1 in
Termination	Solder

800-10 Series

...

Part	Number of Rows	Contact Finish - Post	Mounting Type	Contact Length - Mating	Pitch - Mating	Contact Length - Post	Contact Shape	Contact Material	Contact Type	Number of Positions	Shrouding	Termination	Style	Connector Type	Contact Finish - Mating	Fastening Type	Contact Finish Thickness - Post	Insulation Material	Contact Finish Thickness - Mating	Overall Contact Length	Insulation Color	Insulation Height	Number of Positions Loaded
Mill-Max Manufacturing Corp. 800-10-034-61-001000	1	Gold	Through Hole	0.191 in	0.1 in	0.104 in	Circular	Brass Alloy	Male Pin	34	Unshrouded	Press-Fit Solder	Board	Header	Gold	Push-Pull	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	10 µin	0.405 in	Black	0.11 in	All
Mill-Max Manufacturing Corp. 800-10-040-30-001000	1	Gold	Surface Mount	0.195 in	0.1 in		Circular	Brass Alloy	Male Pin	40	Unshrouded	Solder	Board	Header	Gold	Push-Pull	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	10 µin		Black	0.11 in	All
Mill-Max Manufacturing Corp. 800-10-021-61-001000	1	Gold	Through Hole	0.191 in	0.1 in	0.104 in	Circular	Brass Alloy	Male Pin	21	Unshrouded	Press-Fit Solder	Board	Header	Gold	Push-Pull	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	10 µin	0.405 in	Black	0.11 in	All
Mill-Max Manufacturing Corp. 800-10-058-30-001000	1	Gold	Surface Mount	0.195 in	0.1 in		Circular	Brass Alloy	Male Pin	58	Unshrouded	Solder	Board	Header	Gold	Push-Pull	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	10 µin		Black	0.11 in	All
Mill-Max Manufacturing Corp. 800-10-051-61-001000	1	Gold	Through Hole	0.191 in	0.1 in	0.104 in	Circular	Brass Alloy	Male Pin	51	Unshrouded	Press-Fit Solder	Board	Header	Gold	Push-Pull	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	10 µin	0.405 in	Black	0.11 in	All
Mill-Max Manufacturing Corp. 800-10-011-10-002000	1	Gold	Through Hole	0.142 in	0.1 in	0.118 in	Circular	Brass Alloy	Male Pin	11	Unshrouded	Solder	Board	Header	Gold	Push-Pull	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	10 µin	0.385 in	Black	0.11 in	All
Mill-Max Manufacturing Corp. 800-10-030-10-004000	1	Gold	Through Hole	0.125 in	0.1 in	0.125 in	Circular	Brass Alloy	Male Pin	30	Unshrouded	Solder	Board	Header	Gold	Push-Pull	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	10 µin	0.33 in	Black	0.071 in	All
Mill-Max Manufacturing Corp. 800-10-014-20-001000	1	Gold	Right Angle Through Hole	0.195 in	0.1 in	0.126 in	Circular	Brass Alloy	Male Pin	14	Unshrouded	Solder	Board	Header	Gold	Push-Pull	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	10 µin		Black	0.1 in	All
Mill-Max Manufacturing Corp. 800-10-048-10-001000	1	Gold	Through Hole	0.195 in	0.1 in	0.118 in	Circular	Brass Alloy	Male Pin	48	Unshrouded	Solder	Board	Header	Gold	Push-Pull	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	10 µin	0.438 in	Black	0.11 in	All
Mill-Max Manufacturing Corp. 800-10-046-61-001000	1	Gold	Through Hole	0.191 in	0.1 in	0.104 in	Circular	Brass Alloy	Male Pin	46	Unshrouded	Press-Fit Solder	Board	Header	Gold	Push-Pull	10 µin	Polycyclohexylenedimethylene Terephthalate (PCT)	10 µin	0.405 in	Black	0.11 in	All
