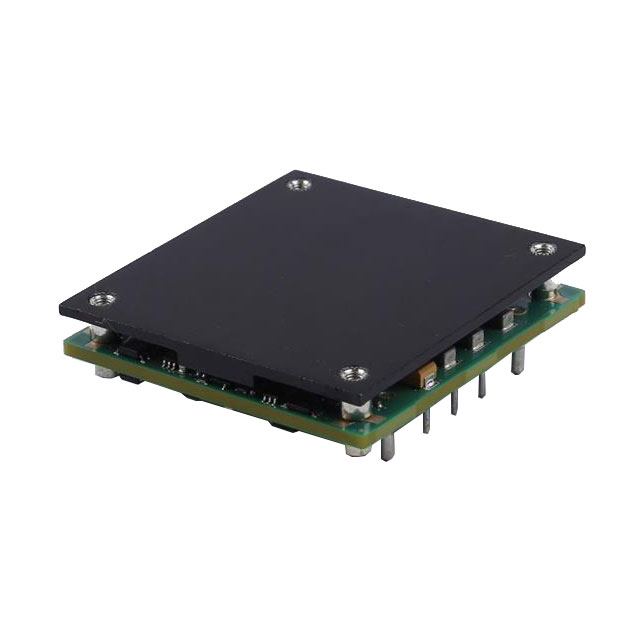

HPS3120N030R26W

Active

NetPower

DC DC CONVERTER 12V 360W

Search across all available documentation for this part.

Active

NetPower

DC DC CONVERTER 12V 360W

Technical Specifications

Parameters and characteristics for this part

Specification	HPS3120N030R26W

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	30 A
Efficiency	90.5 %
Features	Remote On/Off, Load Sharing, Baseplate, Remote Sense
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Half Brick
Power (Watts)	360 W
Size / Dimension [x]	2.4 in
Size / Dimension [x]	61 mm
Size / Dimension [y]	2.28 in
Size / Dimension [y]	57.9 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Supplier Device Package	Half Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

DC DC CONVERTER 12V 360W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Power (Watts)	Control Features	Voltage - Input (Max) [Max]	Applications	Voltage - Output 1	Supplier Device Package	Features	Voltage - Input (Min) [Min]	Type	Efficiency	Current - Output (Max) [Max]	Package / Case	Voltage - Isolation
NetPower HPS3120N030R26W	85 °C	-40 °C	1	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	Chassis Mount	360 W	Active Low, Enable	75 V	ITE (Commercial)	12 V	Half Brick	Baseplate, Load Sharing, Remote On/Off, Remote Sense	18 V	Isolated Module	90.5 %	30 A	Half Brick	2250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2	$ 132.90

General part information

Isolated Module DC DC Converter 1 Output 12V 30A 18V - 75V Input
