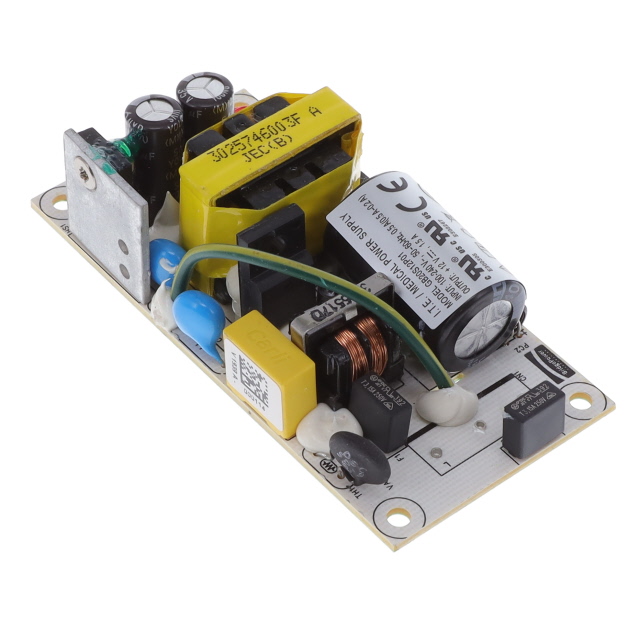

GB20S12P01

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 12V 18W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 12V 18W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 12V 18W

Part	Features	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Applications	Voltage - Output 1	Type	Approval Agency	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Mounting Type	Current - Output 1	Minimum Load Required
SL POWER / Advanced Energy GB20S12P01	Universal Input	90 VAC	264 VAC	4000 V	ITE (Commercial), Medical	12 V	Open Frame	CE, cURus, DEMKO	88 %	3.23 in	0.81 in	39.9 mm	82 mm	1.57 "	20.5 mm	60601-1, 62368-1	-25 °C	70 °C	1	Chassis Mount	1.5 A
SL POWER / Advanced Energy GB20S12K01	Universal Input	100 VAC	240 VAC	4000 V	ITE (Commercial), Medical	12 V	Open Frame	CE, cURus, UL	88 %	3.38 in	1 "	40.6 mm	85.9 mm	1.6 "	25.4 mm		-25 °C	70 °C	1	Chassis Mount	1.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 9.44

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
