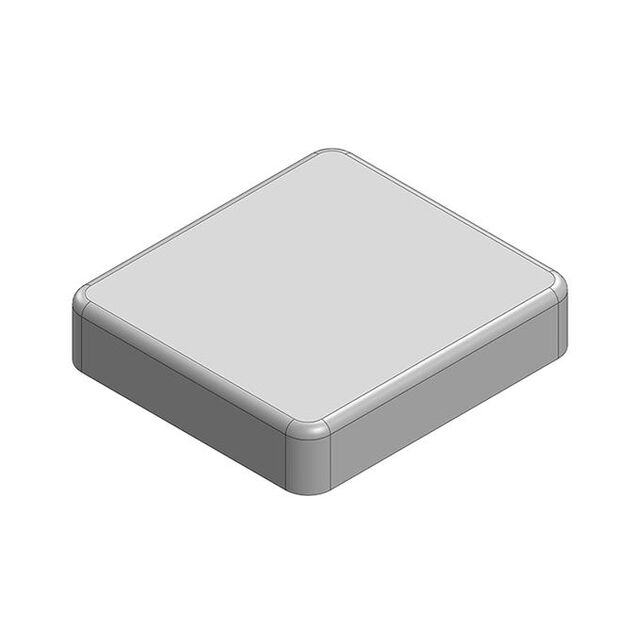

MS182-10S-NS

Active

Masach Tech Ltd.

RF SHIELD 0.654"X0.717" SOLDER

Search across all available documentation for this part.

Active

Masach Tech Ltd.

RF SHIELD 0.654"X0.717" SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

RF SHIELD 0.654"X0.717" SOLDER

Part	Mounting Type	Length - Overall	Length - Overall	Type	Height - Overall [z]	Height - Overall [z]	Width - Overall [y]	Width - Overall [y]	Length - Overall [x]	Length - Overall [x]	Ventilation	Width - Overall [x]	Width - Overall [x]
Masach Tech Ltd. MS182-10F-NS	Solder	0.717 in	18.2 mm	Frame	3.8 mm	0.15 in	0.654 in	16.6 mm
Masach Tech Ltd. MS182-10C-NS	Snap Fit			Cover	3.5 mm	0.138 in			0.732 in	18.6 mm	Non-Vented	17 mm	0.669 in
Masach Tech Ltd. MS182-10S-NS	Solder	0.717 in	18.2 mm	Shield, 1-Piece	3.8 mm	0.15 in	0.654 in	16.6 mm			Non-Vented

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Shield Shield, 1-Piece 0.654" (16.60mm) X 0.717" (18.20mm) Non-Vented Solder
