937-SP-3088R

Active

BEL MAGNETIC SOLUTIONS

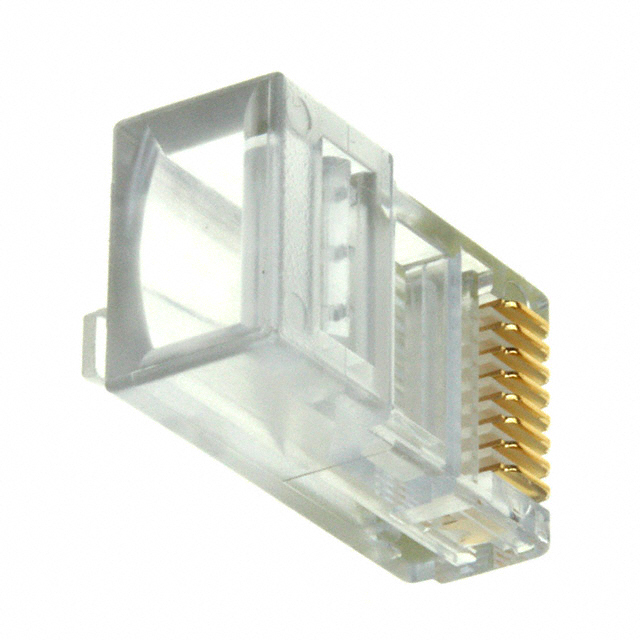

MODULAR CONNECTOR, RJ45 PLUG, 1 X 1 (PORT), 8P8C, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN Technical Data Sheet EN +1

937-SP-3088R

Active

BEL MAGNETIC SOLUTIONS

MODULAR CONNECTOR, RJ45 PLUG, 1 X 1 (PORT), 8P8C, CABLE MOUNT

Deep-Dive with AI

DocumentsProduct Change Notice EN Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	937-SP-3088R

Cable Type	Round Cable, Stranded Wires
Color	Translucent - Clear
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Current Rating (Amps)	1.5 A
Housing Material	Polycarbonate (PC)
Length	22.48 mm
Length	0.885 in
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Shielding	Unshielded
Termination	IDC
Voltage Rating	150 VDC

937-SP-30 Series

Part	Number of Positions/Contacts	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Color	Shielding	Termination	Voltage Rating	Contact Finish	Cable Type	Housing Material	Connector Type	Contact Material	Current Rating (Amps)	Length [x]	Length [x]	Length
BEL MAGNETIC SOLUTIONS 937-SP-3046	6p4c	50 µin	1.27 µm	13.34 mm	0.525 in	Translucent - Clear	Unshielded	IDC	150 VDC	Gold	Flat Oval Cable Stranded Wires	Polycarbonate (PC)	Plug	Phosphor Bronze	1.5 A
BEL MAGNETIC SOLUTIONS 937-SP-3044-SMK	4p4c	50 µin	1.27 µm	13.34 mm	0.525 in	Translucent - Smoke	Unshielded	IDC	150 VDC	Gold	Flat Oval Cable Stranded Wires	Polycarbonate (PC)	Plug	Phosphor Bronze	1.5 A
BEL MAGNETIC SOLUTIONS 937-SP-3066R-SL	6p6c (RJ11 RJ12 RJ14 RJ25)	50 µin	1.27 µm			Translucent - Clear	Unshielded	IDC	150 VDC	Gold	Round Cable Stranded Wires	Polycarbonate (PC)	Plug	Phosphor Bronze	1.5 A	0.652 in	16.56 mm
BEL MAGNETIC SOLUTIONS 937-SP-3088-2PC-A192	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	0.885 in		Translucent - Clear	Unshielded	IDC	150 VDC	Gold	Flat Oval Cable Stranded Wires	Polycarbonate (PC)	Plug	Phosphor Bronze	1.5 A			22.48 mm
BEL MAGNETIC SOLUTIONS 937-SP-3088R	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	0.885 in		Translucent - Clear	Unshielded	IDC	150 VDC	Gold	Round Cable Stranded Wires	Polycarbonate (PC)	Plug	Phosphor Bronze	1.5 A			22.48 mm
BEL MAGNETIC SOLUTIONS 937-SP-3044R	4p4c	50 µin	1.27 µm	13.34 mm	0.525 in	Translucent - Clear	Unshielded	IDC	150 VDC	Gold	Round Cable Stranded Wires	Polycarbonate (PC)	Plug	Phosphor Bronze	1.5 A
BEL MAGNETIC SOLUTIONS 937-SP-3066R	6p6c (RJ11 RJ12 RJ14 RJ25)	50 µin	1.27 µm	13.34 mm	0.525 in	Translucent - Clear	Unshielded	IDC	150 VDC	Gold	Round Cable Stranded Wires	Polycarbonate (PC)	Plug	Phosphor Bronze	1.5 A
BEL MAGNETIC SOLUTIONS 937-SP-3088	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	0.885 in		Translucent - Clear	Unshielded	IDC	150 VDC	Gold	Flat Oval Cable Stranded Wires	Polycarbonate (PC)	Plug	Phosphor Bronze	1.5 A			22.48 mm
BEL MAGNETIC SOLUTIONS 937-SP-3048-A364	8p4c	50 µin	1.27 µm	0.885 in		Translucent - Clear	Unshielded	IDC	150 VDC	Gold	Flat Oval Cable Stranded Wires	Polycarbonate (PC)	Plug	Phosphor Bronze	1.5 A			22.48 mm
BEL MAGNETIC SOLUTIONS 937-SP-3046R	6p4c	50 µin	1.27 µm	13.34 mm	0.525 in	Translucent - Clear	Unshielded	IDC	150 VDC	Gold	Round Cable Stranded Wires	Polycarbonate (PC)	Plug	Phosphor Bronze	1.5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.68
		10	$ 0.59
		25	$ 0.54
		50	$ 0.51
		100	$ 0.49
		250	$ 0.45
		500	$ 0.43
		1000	$ 0.35
		2500	$ 0.32
Newark	Each	1	$ 0.78
		10	$ 0.74
		25	$ 0.63
		50	$ 0.54
		100	$ 0.52
		250	$ 0.47
		500	$ 0.44
		1000	$ 0.37

Description

General part information

937-SP-30 Series

MODULAR CONNECTOR, RJ45 PLUG, 1 X 1 (PORT), 8P8C, CABLE MOUNT

Documents

Technical documentation and resources

937-SP-3088R

Deep-Dive with AI

937-SP-3088R

Deep-Dive with AI

Technical Specifications

937-SP-30 Series

Pricing

Description

937-SP-30 Series

Documents

Product Change Notice EN

Technical Data Sheet EN

Assembly Instructions EN

937-SP-30 Series
