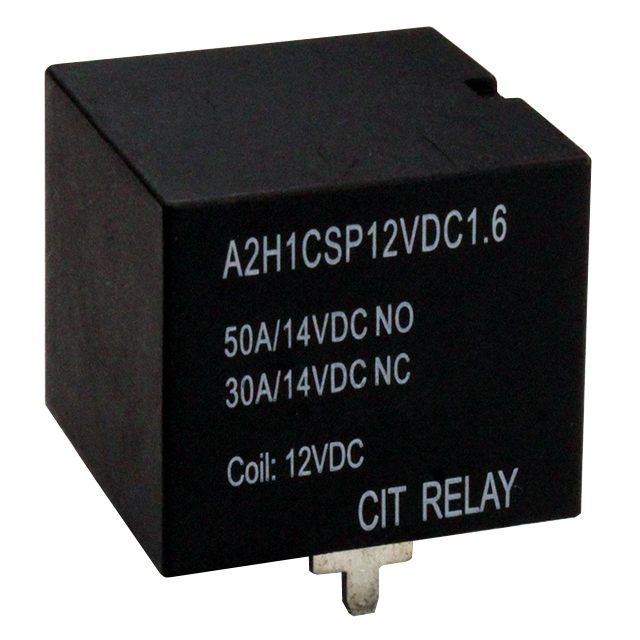

A2H1CSP12VDC1.6

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 50A 12V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 50A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY AUTOMOTIVE SPDT 50A 24V

Part	Contact Rating (Current)	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Coil Resistance	Contact Material	Operate Time	Mounting Type	Features	Coil Current	Must Release Voltage	Coil Voltage	Release Time	Termination Style	Coil Type	Must Operate Voltage
CIT Relay and Switch A2H1CSP24VDC1.6R	50 A	75 VDC	125 °C	-40 °C	SPDT (1 Form C)	320 Ohms	Silver Tin Oxide (AgSnO)	10 ms	Through Hole	Resistor	75 mA	2.4 VDC	24 VDC	10 ms	PC Pin	Non Latching
CIT Relay and Switch A2H1CSP24VDC1.6	50 A	75 VDC	125 °C	-40 °C	SPDT (1 Form C)	360 Ohms	Silver Tin Oxide (AgSnO)	10 ms	Through Hole		66.7 mA	2.4 VDC	24 VDC	10 ms	PC Pin	Non Latching
CIT Relay and Switch A2H1CSP12VDC1.6R	50 A	75 VDC	125 °C	-40 °C	SPDT (1 Form C)	80 Ohms	Silver Tin Oxide (AgSnO)	10 ms	Through Hole	Resistor	150 mA	1.2 VDC	12 VDC	10 ms	PC Pin	Non Latching	7.8 VDC
CIT Relay and Switch A2H1CSP12VDC1.6	50 A	75 VDC	125 °C	-40 °C	SPDT (1 Form C)	90 Ohms	Silver Tin Oxide (AgSnO)	10 ms	Through Hole		133.3 mA	1.2 VDC	12 VDC	10 ms	PC Pin	Non Latching	7.8 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPDT 50A 12V
