0521002.MAT1L

Active

LITTELFUSE

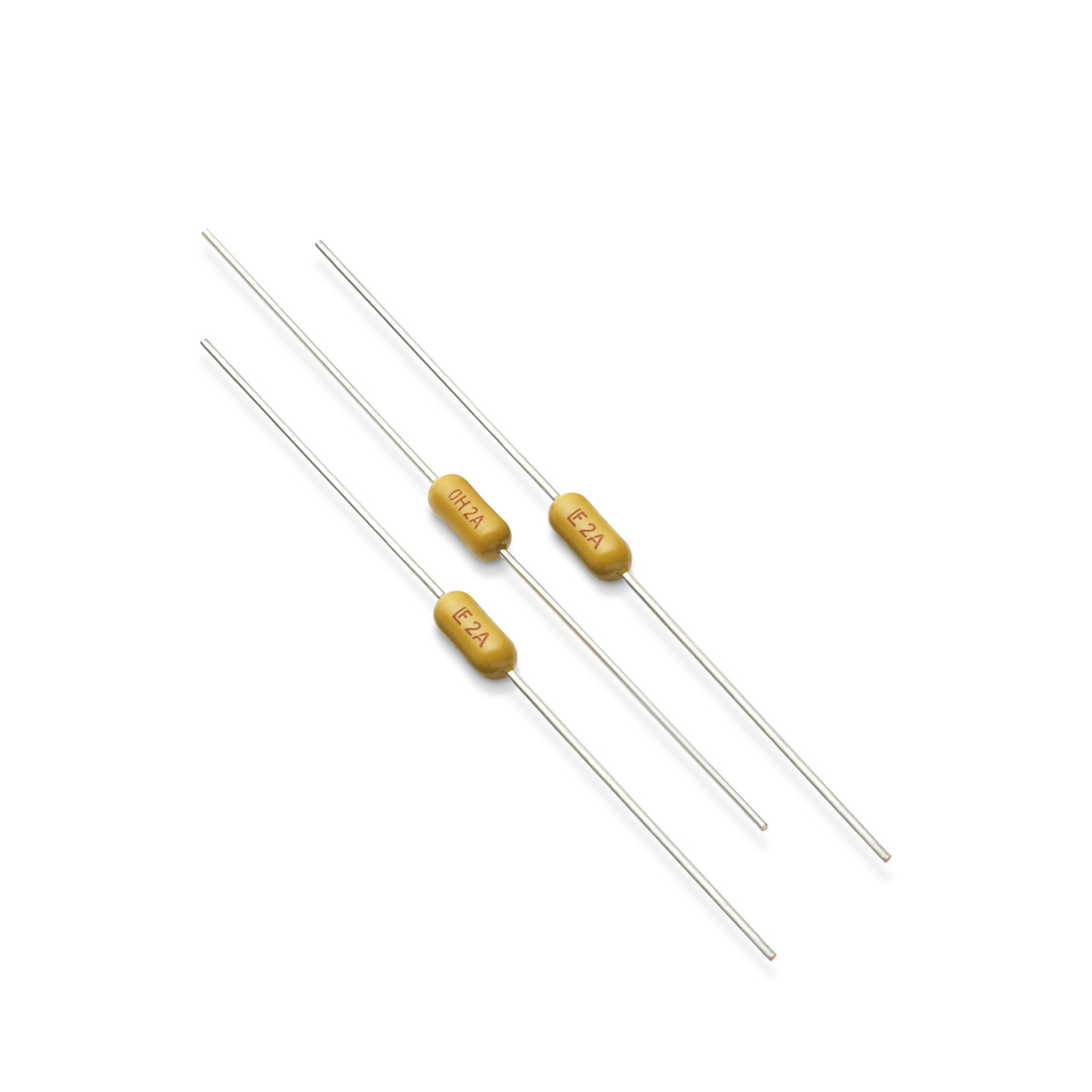

FUSE BOARD MOUNT 2A 75VDC AXIAL

Find alt

Alpha

0521002.MAT1L

Active

LITTELFUSE

FUSE BOARD MOUNT 2A 75VDC AXIAL

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

521002 Series

The 0521 PICO® II Very Fast-Acting Fuse Series is an AEC-Q200 qualified fuse designed to meet an extensive array of performance characteristics in a space-saving sub-miniature package.

Technical Specifications

Parameters and characteristics for this part

Specification	0521002.MAT1L

Approval Agency	cURus, CSA
Breaking Capacity	300 A
Current Rating	2 A
DC Cold Resistance	0.0473 Ohms
Fuse Type	Board Mount (Cartridge Style Excluded)
Melting I²t	0.405
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	Axial
Response Time	Fast Blow
Size / Dimension Diameter	0.135 in
Size / Dimension Length	0.315 in
Voltage Rating - DC	75 V

521002 Series

FUSE 75V FA PICO II 2A AECQ

Part	DC Cold Resistance	Melting I²t	Breaking Capacity	Fuse Type	Mounting Type	Package / Case	Approval Agency	Current Rating	Size / Dimension Length	Size / Dimension Diameter	Voltage Rating - DC	Operating Temperature (Max)	Operating Temperature (Min)	Response Time	Color
LITTELFUSE 0521002.MAT1L	0.0473 Ohms	0.405	300 A	Board Mount (Cartridge Style Excluded)	Through Hole	Axial	CSA cURus	2 A	0.315 in	0.135 in	75 V	125 °C	-55 °C	Fast Blow
LITTELFUSE 0521002.YAT1L	0.0473 Ohms	0.405	300 A	Board Mount (Cartridge Style Excluded)	Through Hole	Axial	CSA cURus	2 A	0.315 in	0.135 in	75 V	125 °C	-55 °C	Fast Blow	Yellow
